$ 65


  • 12dBi omni-directional operation highly enlarges the wireless coverage
  • N female connector, compatible with most of the wireless equipments
  • Weather proof design, suitable for all weather condition
  • Provided mounting kits enable easy installation for various environments
16-08-2022 1:47 PM

Model: TL-ANT2412D

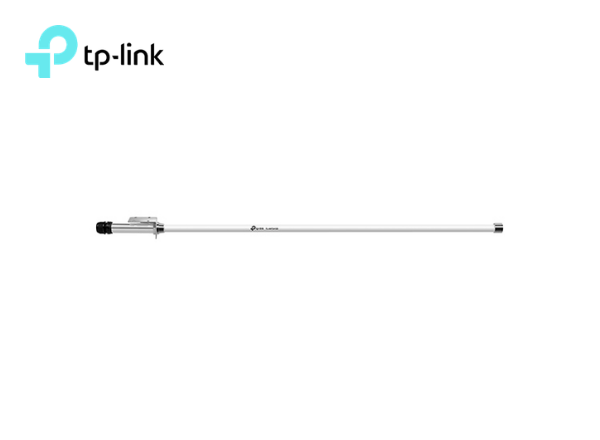

TP-Link 2.4GHz 12dBi Outdoor Omni-directional Antenna

Features

  • 12dBi omni-directional operation highly enlarges the wireless coverage
  • N female connector, compatible with most of the wireless equipments
  • Weather proof design, suitable for all weather condition
  • Provided mounting kits enable easy installation for various environments

Specifications

Weight 0.5kg
Frequency 2.4GHz~2.5GHz
Impedance 50 Ohms
Gain 12 dBi
Radiation Omni-directional
VSWR(MAX.) < 2.0
HPOL Beamwidth 360ยฐ
VPOL Beamwidth 12ยฐ
Polarization Linear, Vertical
Connector Type N Female
Mounting Pole Mount / Wall Mount
Application Outdoor
Lightning Protection DC Ground
Operating Temp. -40โ„ƒ~65โ„ƒ(-40โ„‰~149โ„‰)
Storage Temp. -40โ„ƒ~80โ„ƒ (-40โ„‰~176โ„‰)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Safety, Emission and Others CE, FCC, Compliant with RoHS
Package Contents 12dBi Outdoor Omni-directional Antenna Installation mounting kits User Guide
Dimension 1200mm
