Description
Model: EAP668-Outdoor HD
TP-Link AX3600 Indoor/Outdoor WiFi 6 Access Point
- High-Density Connectivity: Supports up to 1,024 devices.*
- Ideal for Outdoor Environments: IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
- High-gain Detachable Antennas: 4× External N-Type Omni Antennas, 6 dBi Dual-Band (Antennas Included).
- Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.†
- Multiple Ports for Flexible Network Solutions: 1× 10G SFP+ slot, 1× 2.5G PoE-In Port, and 1× Gigabit PoE-Out port.
- PoE+/PoE++ Powered and PoE+ Out: Supports 802.3at/bt PoE input and 802.3at PoE output.‡
- Advanced Features: Omada Mesh, Seamless Roaming, Bluetooth, and Centralized Cloud Management.§
Specifications
| HARDWARE FEATURES | |
|---|---|

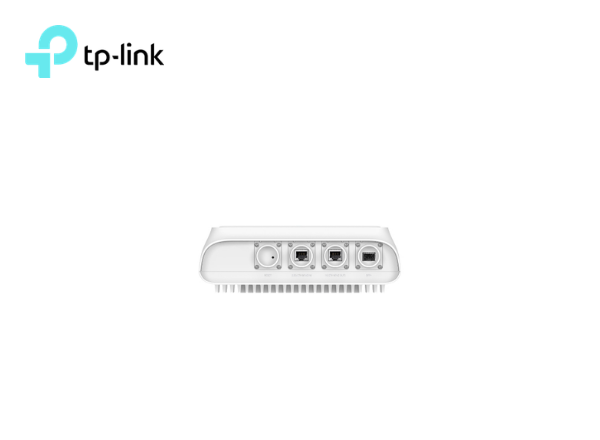

| Interface | 1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+ |
| Button | Reset |
| Power Supply | 802.3at/bt PoE |
| Max. Power Consumption | 802.3bt: • EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out) • US: 25.4W (bt type3: af PSE out; bt type4: at PSE out); 802.3at: • EU: 20.2W (PSE disabled) • US: 25.4W (PSE disabled) Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input. |
| Dimensions ( W x D x H ) | 9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit) |
| Antenna | 4× External Dual-Band Omni Antennas • 2.4 GHz: 6.0 dBi • 5 GHz: 6.0 dBi |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | Wall/pole mouting (kits included)，supporting horizontal ±45° adjustment • Optional bracket accessory APM-110: Supports vertical ±90°, horizontal ±45° adjustment • Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment (Note: Optional bracket accessories need to be purchased separately) |
| WIRELESS FEATURES | |
|---|---|
| Concurrent Clients | 1,000+* |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 5 GHz, and 2.4 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 1148 Mbps |
| Wireless Functions | • 1024-QAM • Mesh§ • Seamless Roaming(802.11k/v/r)§ • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment (Adjust transmit Power on dBm) • Transmit Power Control • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs:16 (8 for each band) • MU-MIMO (4 × 4 MU-MIMO DL/UL) • UL/DL OFDMA • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); • FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP668-Outdoor HD • 4× External Dual-Band Omni Antennas • Installation Guide • Mounting Kit • Waterproof Kit |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
