Description
Model: MC110CS

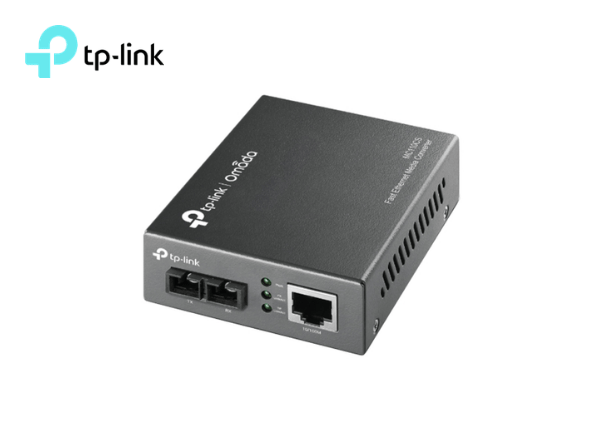

TP-Link 10/100Mbps Single-Mode Media Converter
Overview
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Ranges up to 20km (12.4 miles) transmission distance withย 9/125 ฮผm single-mode fiber
Specifications
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function | Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 20km (12.4 miles) |
| Ports | 1 100M dual SC/UPC port 1 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 ร 2.9 ร 1.1 in. (95 ร 73 ร 27 mm) |
| Power Supply | External power supply |
| Max Power Consumption | 2.4W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | โข Media Converter MC110CS โข Power Adapter โข Installation Guide |
| Environment | Operating Temperature: 0โ~40โ (32โ~104โ) Storage Temperature: -40โ~70โ (-40โ~158โ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
