$ 45


  • Built for outdoor Wi-Fi applications
  • Up to 300Mbps1ย Wi-Fi with 2x2 MIMO technology
  • High transmission power and high gain antennas provide a long-range coverage area
  • Durable, weatherproof enclosure to withstand fair and foul weather
  • Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
  • Auranet Controller Software lets administrators easily manage hundreds of EAPs
15-08-2022 4:20 PM

Model: EAP110-Outdoor

TP-Link N300 Wireless N Outdoor Access Point

Overview

  • Built for outdoor Wi-Fi applications
  • Up to 300Mbps1ย Wi-Fi with 2x2 MIMO technology
  • High transmission power and high gain antennas provide a long-range coverage area
  • Durable, weatherproof enclosure to withstand fair and foul weather
  • Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
  • Auranet Controller Software lets administrators easily manage hundreds of EAPs
  • Captive portal provides a convenient method for guest authentication
  • Supports management vlan for an enhanced network management

Specifications

HARDWARE FEATURES

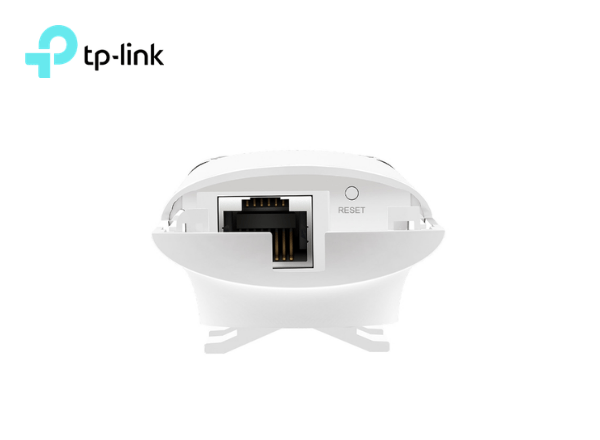

Interface 1 ร— Fast Ethernet (RJ-45) Port (Support Passive PoE)
Button Reset
Power Supply 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 3.1 W
Dimensions ( W x D x H ) 8.2 ร— 3.7 ร— 1.7 in. (209 ร— 95 ร— 42.6 mm)
Antenna Type 2 ร— 3dBi External Omni waterproof
Weatherproof Enclosure IP65

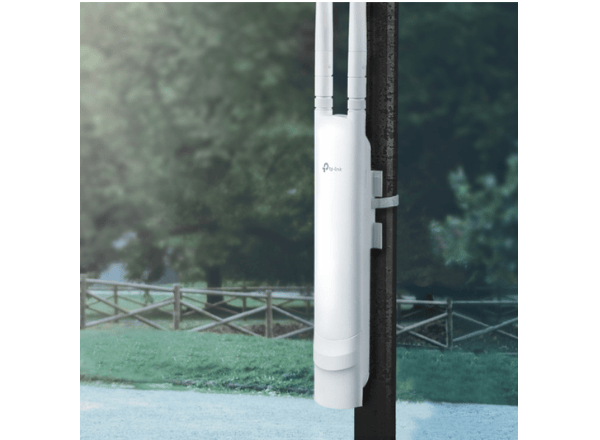

Mounting Pole or wall mounting (mounting kit included)
WIRELESS FEATURES
Wireless Client Capacity 100+**
Concurrent Clients 100+**
Wireless Standards IEEE 802.11n/g/b
Frequency 2.4GHz
Signal Rate 11n: Up toย 300Mbps* 11g: Up toย 54Mbps* 11b: Up toย 11Mbps*
Transmit Power < 27dBm
Wireless Functions Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (adjustable on 1 dBm step) QoS (WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID, AP, and Client
Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App Yes
Centralized Management โ€ข Omada Hardware Controller (OC300) โ€ข Omada Hardware Controller (OC200) โ€ข Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local and Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification FCC, RoHS
Package Contents 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kit Waterproof Rubber Insert Waterproof Antennas Installation Guide
Environment Operating Temperature: -30โ„ƒ~65โ„ƒ (-22โ„‰~149โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
