$ 199


  • One USB console controls 4 DVI computers
  • 2 port USB Hub built in
  • Fully compliant with the DVI-Digital and DVI-Analog specification
  • DVI interface technology to ensure crisp and clean digital display
06-08-2022 3:42 PM

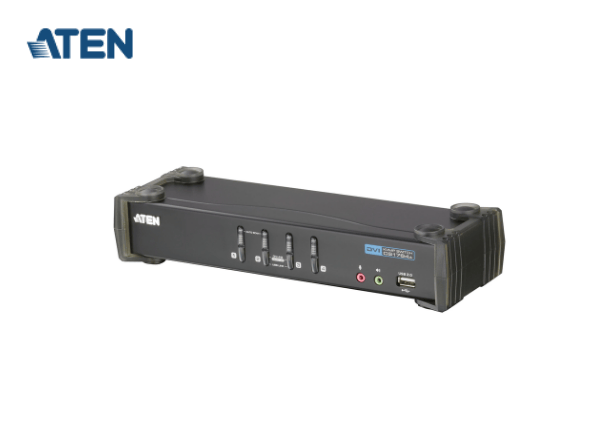

Model: CS1764A

ATENย 4-Port USB DVI/Audio KVMPโ„ข Switch

  • One USB console controls 4 DVI computers
  • 2 port USB Hub built in
  • Fully compliant with the DVI-Digital and DVI-Analog specification
  • DVI interface technology to ensure crisp and clean digital display

Overview

CS1764 is a DVI KVMย Switch with built-in sound effect function. It is specially designed for users of PC and Mac with built-in DVI interfaces and loyal fans of SOHO environment and technology, which is well-suited for DVI. This unique type of KVM switch can easily control 4 computers, which have built-in DVI interfaces, via a DVI display and either a PC or Mac keyboard and mouse. Image distortion due to conversion of analog and digital signals will not be a problem anymore.

Features

  • One USB console controls 4 DVI computers
  • 2 port USB Hub built in
  • Fully compliant with the DVI-Digital and DVI-Analog specification
  • DVI interface technology to ensure crisp and clean digital display
  • Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
  • With speaker and microphone support
  • Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
  • Buzzer On/Off via hotkey
  • Computer selection via front panel pushbuttons and hotkeys
  • Superior video quality - up to 1920 x 1200; DDC2B
  • HDCP compliant
  • Firmware upgradable
  • ATEN USB ASIC Inside
  • OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
  • SUN/Mac keyboard support and emulation*

Specifications

Computer Connections 4
Port Selection Hotkey, Pushbutton, Mouse

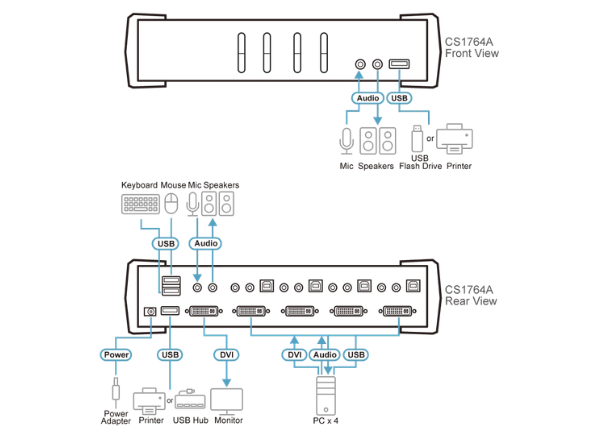

Connectors

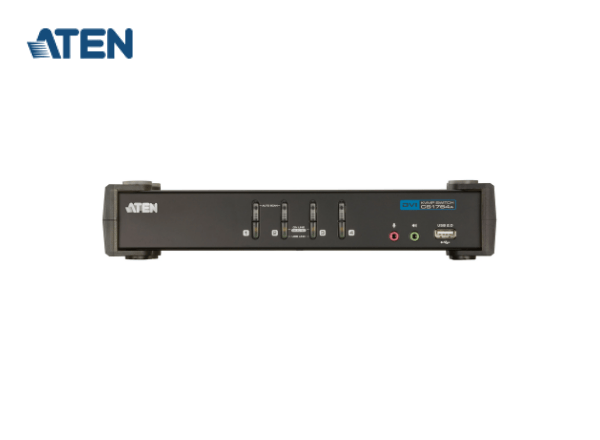

Console Ports 2 x USB Type A Female (White; front panel) 1 x DVI-I Female (White) 2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel) 2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)

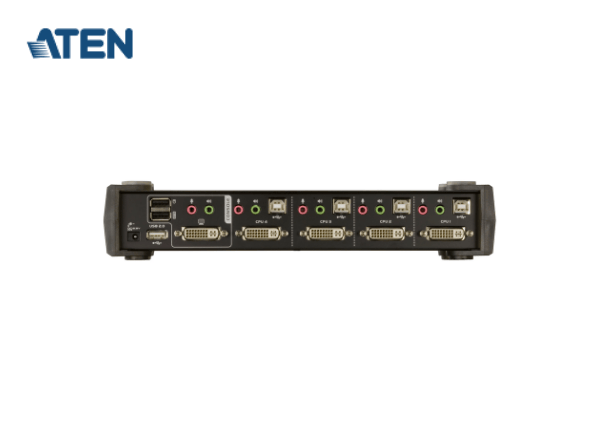

KVM Ports 4 x USB Type B Female (White) 4 x DVI-I Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)
Power 1 x DC Jack
USB Hub USB Hub
Switches
Selected 4 x Pushbutton
LEDs
USB Link 4 (Green)
On Line /Selected 4 (Orange)
Emulation
Keyboard / Mouse USB
Video 1920 x 1200@ 60Hz; DDC2B
Scan Interval 1โ€“99 Seconds (Default: 5 sec.)
Power Consumption DC5.3V:4.8W:38BTU
Environmental
Operating Temperature 0 - 50ยฐC
Storage Temperature -20 - 60ยฐC
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.94 kg ( 2.07 lb )
Dimensions (L x W x H) 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
