ATEN VS1204T 4-Port VGA/Audio Cat 5 Splitter | A135

$155.00

  • One audio/video input to 4 audio/video outputs via Cat 5e cable
  • Uses Cat 5e cable to extend displays up to 300 m
  • Superior video quality – up to 1920 x 1200@60Hz
  • Audio enabled (mono)
Categories: , ,

Description

Model: VS1204T

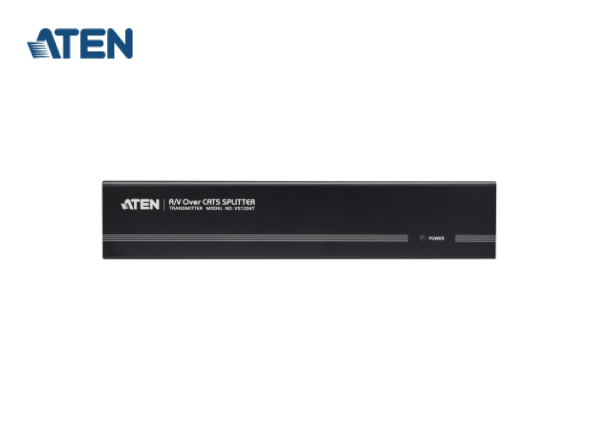

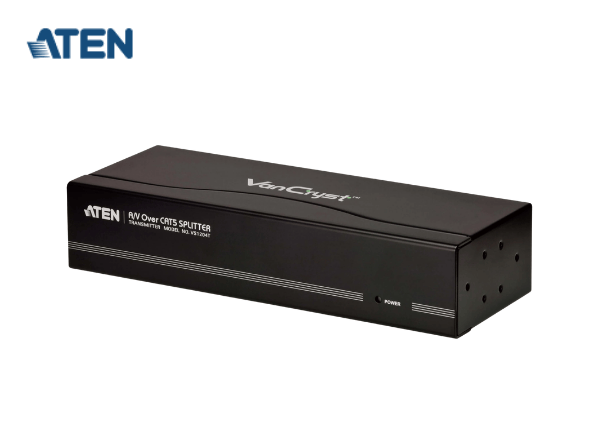

ATEN 4-Port VGA/Audio Cat 5 Splitter

  • One audio/video input to 4 audio/video outputs via Cat 5e cable
  • Uses Cat 5e cable to extend displays up to 300 m
  • Superior video quality – up to 1920 x 1200@60Hz
  • Audio enabled (mono)

Overview

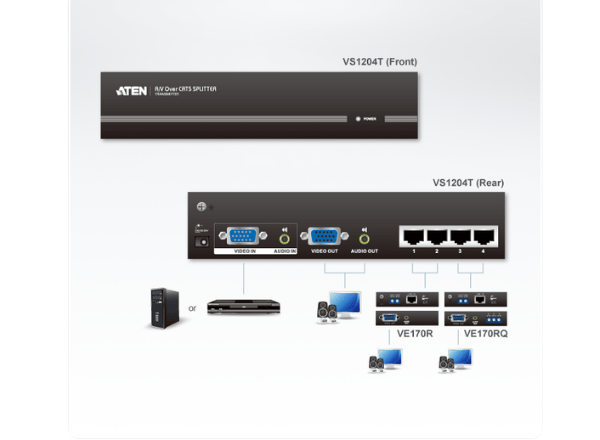

The VS1204T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 4 displays over a long distance. Incorporating suggested compatible receivers*, the VS1204T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.

Features

  • One audio/video input to 4 audio/video outputs via Cat 5e cable
  • Supports local display + 4 remote displays
  • Supports up to 225 MHz bandwidth
  • Uses Cat 5e cable to extend displays up to 300 m
  • Superior video quality – up to 1920 x 1200@60Hz
  • Audio enabled (mono)
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable

Specifications

Video Input
Interfaces 1 x HDB-15 Male (Blue)
Impedance 75 Ω
Max. Distance 1.8 m

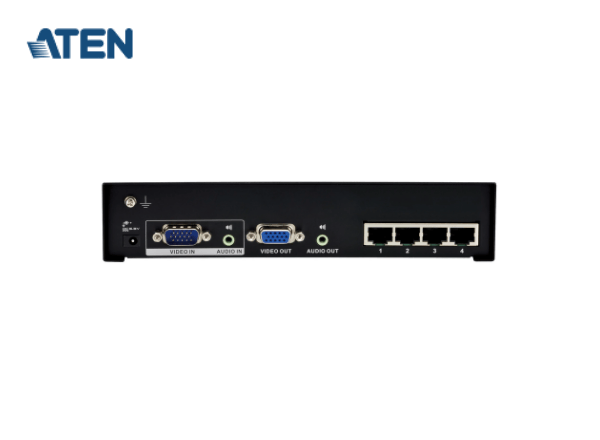

Video Output
Interfaces 1 x HDB-15 Female (Blue) – Local Output
4 x RJ-45 Female
Impedance 75 Ω
Video
Max. Bandwidth 225 MHz
Max. Resolutions / Distance Up to 1920 x 1200@60Hz@150m;
1280 x 1024@60Hz@300m
Audio
Input 1 x Mini Stereo Jack Female (Green)
Output 1 x Mini Stereo Jack Female (Green)
Connectors
Power 1 x DC Jack (Black)
Power Consumption DC5.3V:3.55W:17BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.59 kg ( 1.3 lb )
Dimensions (L x W x H) 20.00 x 7.51 x 4.40 cm
(7.87 x 2.96 x 1.73 in.)
Carton Lot 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
