Description
Model: AC50

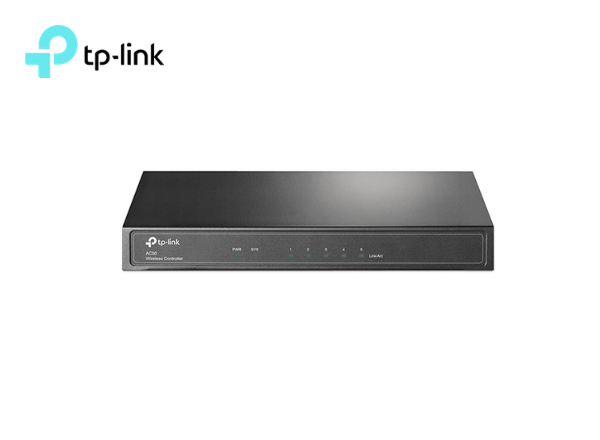

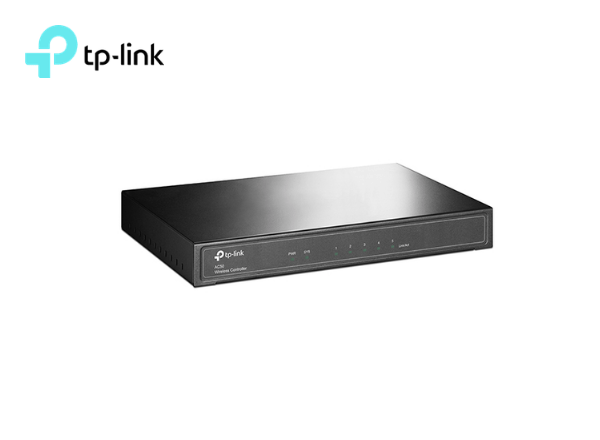

TP-Link AC50 Wireless Controller
Overview
- Auto-detect and centralized management, up to 50 CAPs
- License-free management reduces the OPEX of enterprise network
- Easy deployment without changing the existing network topology
- Unified configuration of wireless networks, support mapping of SSID and VLAN
- Support MAC authentication, portal authentication
- Dual-link back up for management safety.
Specifications
| HARDWARE FEATURES | |
|---|---|

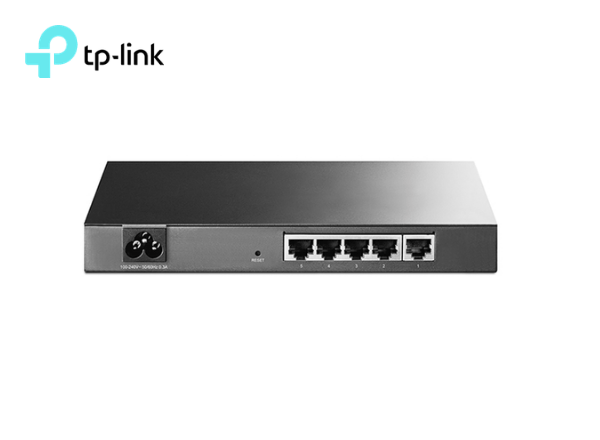

| Interface | 10/100Mbps Ethernet Port*5 |
| Installation | Desktop |
| Power Supply | Maximum: 2.5W |
| Power Consumption | 100๏ฝ240V AC,50/60Hz |
| Dimensions ( W x D x H ) | 8.2*5.0*1.0in. (209*126*26mm) |
| FEATURES | |
|---|---|
| Management Scale | Up to 50 APs |
| Wireless Fuction | L3 Management Multi-SSID Load Balance Band Steering WMM Communication protocol |
| Wireless Security | SSID to VLAN Mapping AP Isolation SSID Isolation Encryption |
| AP Management | AP Automatic Discovery AP Unified Configuration AP Reboot Schedule AP Batch Firmware Upgrade Grouped AP management AP LED ON/OFF Web-based Management DHCP Server |
| Authentication | Captive Portal Authentication MAC Authentication |
| System status | AP Status Client Status Authenticated User Status |
| System Management | Configuration Backup/Import Ping/Tracert Tool System Log |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | AC50 Power Cord Quick Installation Guide |
| System Requirements | Microsoftยฎ Windowsยฎ10, 8, 7,Vistaโข, XP or MACยฎ OS, NetWareยฎ, UNIXยฎ or Linux |
| Environment | Operating Temperature: 0โ~40โ (32โ~104โ) Storage Temperature: -40โ~70โ (-40โ~158โ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
