Model: Archer AX73

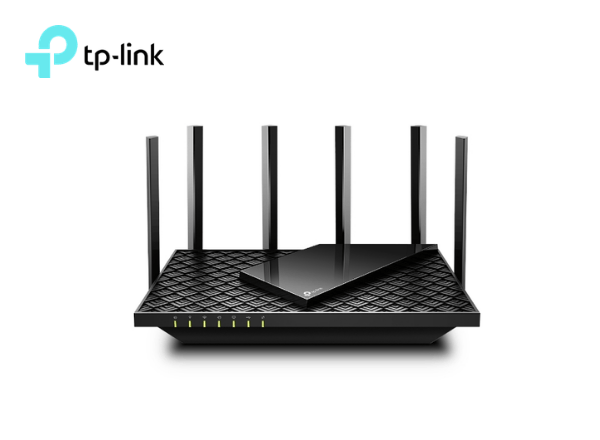

TP-Link AX5400 Dual-Band Gigabit Wi-Fi 6 Router

Overview

  • Full Gigabit WiFi for 8K Streaming – Up to 5400 Mbps of dual-band WiFi for faster browsing, streaming, and downloading, all at the same time.
  • Fully Featured Wi-Fi 6 – Equipped with the top structure of 4T4R and HE160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connections.
  • Up to 4x More Capacity – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.†
  • Extensive Coverage – 6× high-performance antennas with beamforming technology ensure broad coverage.
  • HomeShield – TP-Link's premium security service keeps your home network safe with cutting-edge features for network and IoT protection.*
  • More Vents, Long-Lasting Performance – Contemporary design that also acts as a vent area to unleash the full power of performance.
  • USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
  • Easy Setup – Set up the router in minutes with guided instructions using the Tether app.

Specifications

WIRELESS
Standards Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX5400 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 3 Bedroom Houses
6× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity High
Dual-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 6 Streams Connect your devices to more bandwidth
Working Modes Router Mode Access Point Mode
HARDWARE
Processor 1.5 GHz Triple-Core CPU

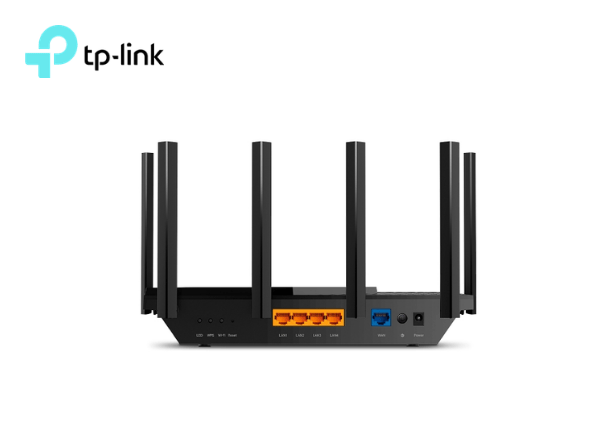

Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN PortsStatic Link Aggregation (LAG) available with 2× LAN ports

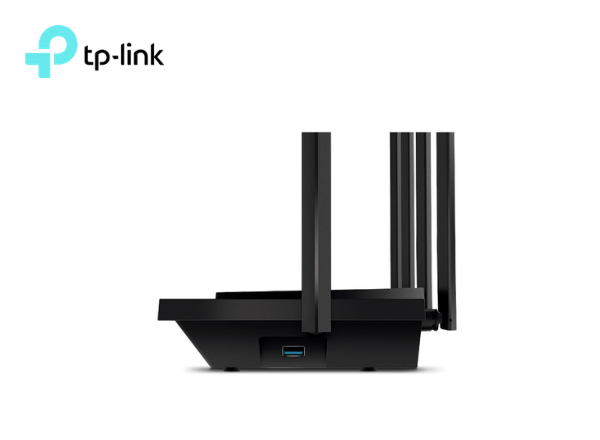

USB Support 1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button
Power 12 V ⎓ 2.5 A
SECURITY
WiFi Encryption WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall Access Control IP & MAC Binding Application Layer GatewayHomeShield Security
Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server OpenVPN PPTP
SOFTWARE
Protocols IPv4 IPv6
Service Kits HomeShield Learn More>
OneMesh™ OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products>
Parental Controls HomeShield Parental Controls
Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade TP-Link ID DDNS
NAT Forwarding Port Forwarding Port Triggering DMZ UPnP Virtual Server
IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP Address Reservation DHCP Client List Server
DDNS TP-Link NO-IP DynDNS
Management Tether App Webpage
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity 2.4GHz: 11ac VHT20 MCS0:-94.5dBm 11ac VHT20 MCS8:-72.5dBm 11ac VHT40 MCS0:-92.5dBm 11ac VHT40 MCS9:-69.5dBm 11ax HE20 MCS0:-95dBm 11ax HE20 MCS11:-64.5dBm 11ax HE40 MCS0:-92.5dBm 11ax HE40 MCS11:-62dBm 5GHz: 11ac VHT20 MCS0:-97dBm 11ac VHT20 MCS8:-74dBm 11ac VHT40 MCS0:-95dBm 11ac VHT40 MCS9:-70dBm 11ac VHT80 MCS0:-91.5dBm 11ac VHT80 MCS9:-66dBm 11ac VHT160 MCS0:-86dBm 11ac VHT160 MCS9:-61dBm 11ax HE20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-91.5dBm 11ax HE40 MCS11:-62dBm 11ax HE80 MCS0:-88dBm 11ax HE80 MCS11:-58dBm 11ax HE160 MCS0:-85.5dBm 11ax HE160 MCS11:-55dBm
PHYSICAL
Dimensions (W×D×H) 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm)
Package Contents Wi-Fi Router Archer AX73 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
