Description
Model: US424
ATENย 4 x 4 USB 2.0 Peripheral Sharing Switch
- 4 built in USB portsย โย all-in-one design allows for a neat and tidy installation that reduces cable clutter
- Enables 4 computers to share 4 USB devicesย โย a USB keyboard, mouse and up to two peripheral devices
- Simple port selection via remote port selector for convenient switch placement
- Non-powered (supports optional USB power adapter)
Overview

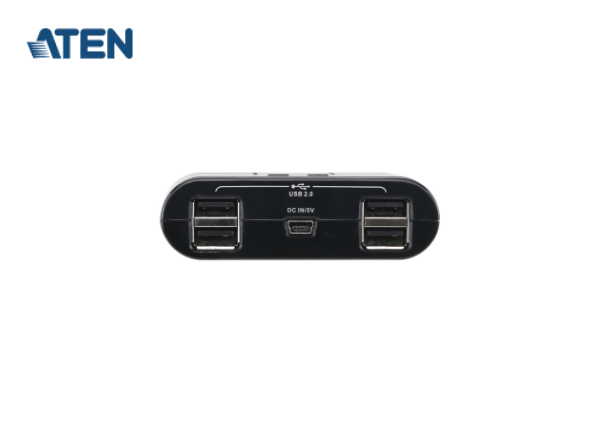

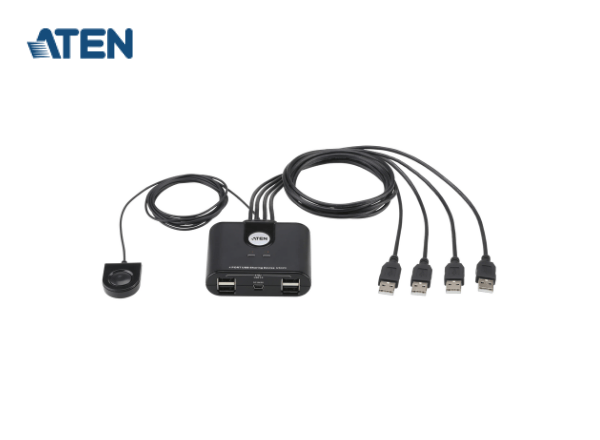

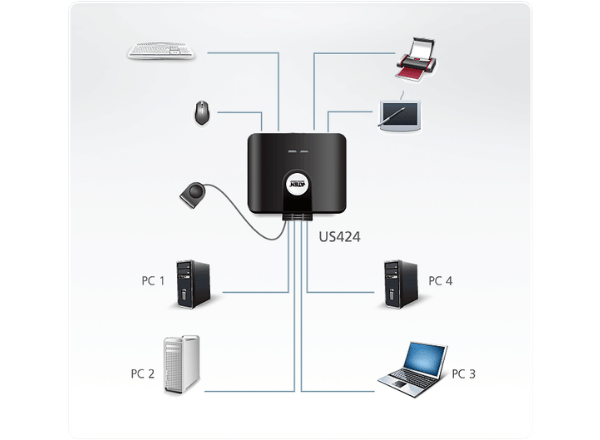

The US424 is a 4-port USB peripheral sharing device that enables 4 computers to share the use of 4 USB devices โ a keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US424 all-in-one design allows for a neat and tidy installation โ no need to connect 4 separate USB cables to the computer, thus eliminating cable clutter.
For extra convenience, it features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. US424 is the ideal way to share USB peripherals in a multimedia office environment.
Features
- 4 built in USB portsย โย all-in-one design allows for a neat and tidy installation that reduces cable clutter
- Enables 4 computers to share 4 USB devicesย โย a USB keyboard, mouse and up to two peripheral devices
- Simple port selection via remote port selector for convenient switch placement
- USB 2.0 compliant
- Multiplatform supportย โย Windows, Linux ,Mac and Sun
- LED indicators display port focus
- Overcurrent protection
- Non-powered (supports optional USB power adapter)
- Hot pluggable
Specifications
| Computer Connections | 4 |
| Port Selection | Remote port selector |
| Connectors | |
| Computer | 4 x USB Type A Male (Black) |
| Device | 4 x USB Type A Female (Black) |
| Power (Optional) | 1 x USB mini B Female (Black) |
| Cable Length | |
| USB Cable | 2 x 1.2 m / 2 x 1.8 m |
| Remote Port Selector | 1.8 m |
| LEDs | |
| Selected | 2 (Green / Orange) |
| Environmental | |
| Operating Temperature | 0โ40ยฐC |
| Storage Temperature | -20โ60ยฐC |
| Humidity | 0โ80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.22 kg ( 0.48 lb ) |
| Dimensions (L x W x H) | 8.24 x 6.65 x 2.53 cm (3.24 x 2.62 x 1 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
