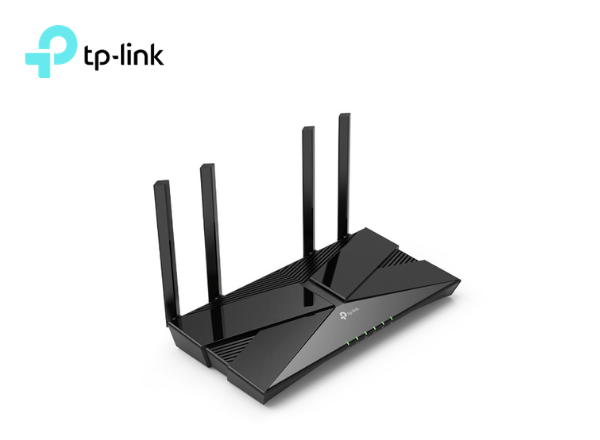

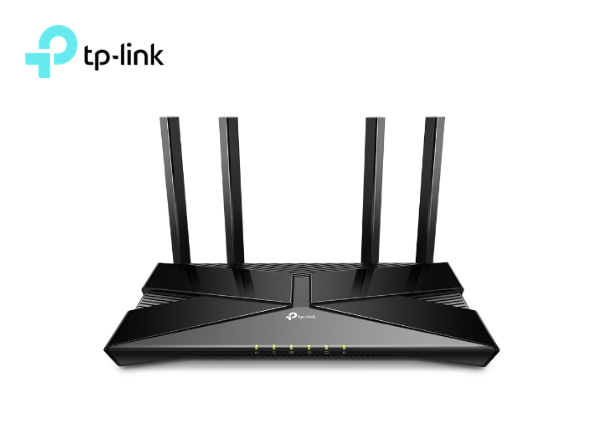

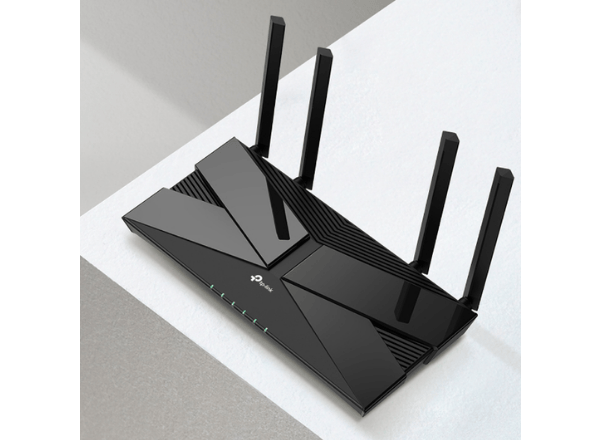

TP-Link Archer AX20 AX1800 Dual-Band Wi-Fi 6 Router

$ 70

Dual-Band Wi-Fi 6: Wi-Fi 6 technology achieves faster speeds, greater capacity and reduced network congestion compared to the previous generation.²
Next-Gen 1.8 Gbps Speeds: Enjoy smoother and more stable streaming, gaming, downloading and more with WiFi speeds up to 1.8 Gbps (1200 Mbps on 5 GHz band and 574 Mbps on 2.4 GHz band).¹
Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag for ultra-responsive entertainment.³
Quad-Core Processing: The powerful 1.5 GHz quad-core CPU ensures communications between your router and connected devices are smooth.
Extensive Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX1800 as it focuses signal strength to your devices far away using Beamforming technology, 4 antennas and an advanced front-end module (FEM) chipset.

11-08-2022 9:13 AM

Model : Archer AX20

TP-Link AX1800 Dual-Band Wi-Fi 6 Router

Overview

Super-Fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.^†
Broader Coverage – Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.^§
Next-Gen Platform – The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption.^△
Parental Controls – Enjoy the most versatile yet free parental controls features among all routers, including URL blocking, profile management, pausing, and more.
Works with Most ISPs – Works with all internet service providers, such as Comcast, Charter, AT&T, Verizon, Xfinity, Spectrum, RCN, Cox, CenturyLink, Frontier, etc.
OneMesh – Use with OneMesh extenders to get whole-home coverage and enjoy smooth roaming between signals.
Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App.
Backward Compatible – Supports all previous 802.11 standards Wi-Fi devices.

Specifications

WIRELESS
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Capacity	High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth
Working Modes	Router Mode Access Point Mode

HARDWARE
Processor	1.5 GHz Quad-Core CPU

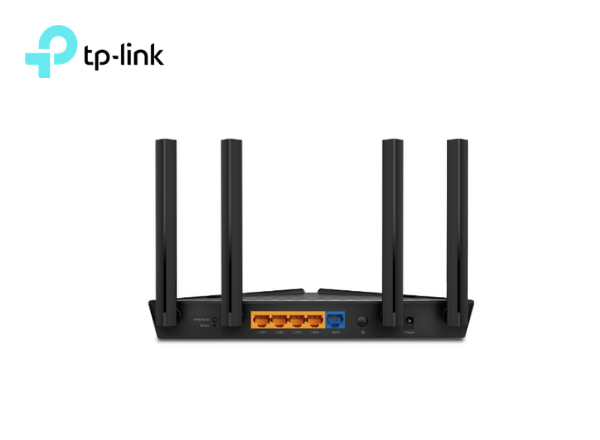

Ethernet Ports	1× Gigabit WAN Port 4× Gigabit LAN Ports
USB Support	1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons	WPS/Wi-Fi Button Power On/Off Button LED On/Off Button Reset Button
Power	12 V ⎓ 1.5 A

SECURITY
WiFi Encryption	WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	OpenVPN PPTP

SOFTWARE
Protocols	IPv4 IPv6
OneMesh™	OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products>
Parental Controls	URL Filtering Time Controls
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device
Cloud Service	Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link NO-IP DynDNS
Management	Tether App Webpage Check Web Emulator>

OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power	FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity	5 GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm 11ax HE80_MCS11:-58dBm 2.4 GHz: 11g 6Mbps:-97dBm 11n HT20_MCS0:-97dBm 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm 11ax HE40_MCS11:-61dBm

TEST DATA

WiFi Transmission Power

FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity

5 GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm 11ax HE80_MCS11:-58dBm 2.4 GHz: 11g 6Mbps:-97dBm 11n HT20_MCS0:-97dBm 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm 11ax HE40_MCS11:-61dBm

PHYSICAL
Dimensions (W×D×H)	10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm)
Package Contents	Wi-Fi Router Archer AX20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
