$ 80


  • Wi-Fi 6 Technology Featuring Intel: Wi-Fi 6 technology achieves up to 3x faster speeds, higher capacity and lower latency compared to the previous generation of Wi-Fi 5 while Intel's dual-core CPU ensures your experience is smooth and buffer-free.
  • Next-Gen 3 Gbps Speeds: Reach incredible speeds up to 3 Gbps (2402 Mbps on 5 GHz band and 574 Mbps on 2.4 GHz band) for faster streaming and gaming like you have never experienced before.
  • Connect More Devices:  Simultaneously communicate more data to more devices using revolutionary OFDMA and MU-MIMO technology, letting you connect 40+ devices.
  • Minimize Lag for All Devices and Applications: Experience ultra-smooth entertainment whether you are streaming 4K videos, gaming online, or even video chatting with up to 75% reduced lag.*
  • More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage up to 2,000 sq. ft. with Archer AX50 as it focuses signal strength to your devices using Beamforming technology and 4 antennas.
11-08-2022 9:03 AM

Model : Archer AX50

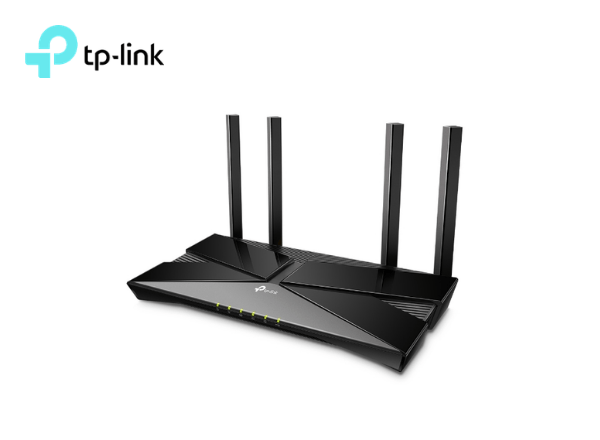

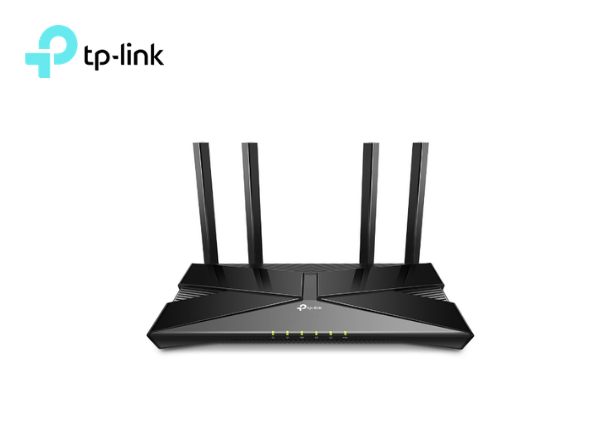

TP-Link AX3000 Dual Band Gigabit Wi-Fi 6 Router

Overview

  • Wi-Fi 6 Technology Featuring Intel: Wi-Fi 6 technology achieves up to 3x faster speeds, higher capacity and lower latency compared to the previous generation of Wi-Fi 5 while Intel's dual-core CPU ensures your experience is smooth and buffer-free.
  • Next-Gen 3 Gbps Speeds: Reach incredible speeds up to 3 Gbps (2402 Mbps on 5 GHz band and 574 Mbps on 2.4 GHz band) for faster streaming and gaming like you have never experienced before.
  • Connect More Devices:  Simultaneously communicate more data to more devices using revolutionary OFDMA and MU-MIMO technology, letting you connect 40+ devices.
  • Minimize Lag for All Devices and Applications: Experience ultra-smooth entertainment whether you are streaming 4K videos, gaming online, or even video chatting with up to 75% reduced lag.*
  • More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage up to 2,000 sq. ft. with Archer AX50 as it focuses signal strength to your devices using Beamforming technology and 4 antennas.
  • HomeCareTMProtect your family with a lifetime free subscription of TP-Link’s HomeCare featuring next-level antivirus, robust parental controls and QoS.
  • Increased Battery Life for Devices: Target Wake Time technology reduces your devices' power consumption to extend battery life.
  • Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
  • Backward Compatible: Archer AX50 supports all previous 802.11 standards and all WiFi devices.

Specifications

WIRELESS
Standards Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 3 Bedroom Houses
4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Capacity High
Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 4 Streams Connect your devices to more bandwidth
Working Modes Router Mode Access Point Mode
HARDWARE
Processor Dual-Core CPU

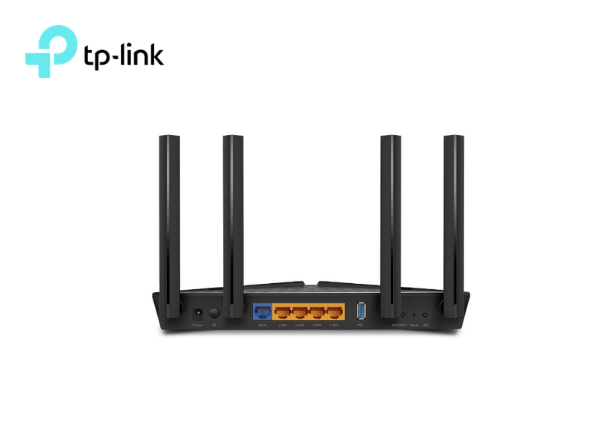

Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN PortsStatic Link Aggregation (LAG) available with 2× LAN ports
USB Support 1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons Wi-Fi/WPS Button Power On/Off Button LED On/Off Button Reset Button
Power 12 V ⎓ 2 A
SECURITY
WiFi Encryption WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall Access Control IP & MAC Binding Application Layer GatewayHomeCare™ Antivirus
Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log
Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server OpenVPN PPTP
SOFTWARE
Protocols IPv4 IPv6
Service Kits HomeCare™ Learn More>
Parental Controls HomeCare™ Parental Controls
Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight
WAN Types Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service QoS by Device HomeCare™ QoS
QoS by Application
Cloud Service Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding Virtual Servers Port Forwarding Port Triggering DMZ UPnP
IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP Address Reservation DHCP Client List Server
DDNS TP-Link NO-IP DynDNS
Management Tether App Webpage Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications FCC
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz)
WiFi Reception Sensitivity 5 GHz: 11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS11:-55dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm 11ax HE160_MCS0:-85dBm, 11ax HE160_MCS11:-55dBm 2.4 GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 × 1.5 in (260.2 x 135.0 x 38.6 mm)
Package Contents Wi-Fi Router Archer AX50 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
