Description

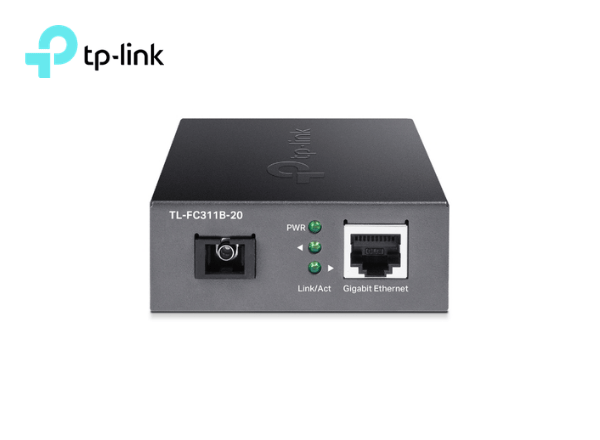

Model: TL-FC311B-20
TP-Link Gigabit WDM Media Converter
Overview
- 1รย 10/100/1000Mbps Auto-Negotiation RJ45 portย supportsย Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20 km
Specifications
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0หC to 50หC (32หF to 122หF) |
| Storage Temperature | -40หC to 70หC (-40หF to 158หF) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
|---|---|
| Interface | โข 1ร Gigabit SC Fiber Port โข 1ร 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | โข Single-mode Fiber โข UTP category 5, 5e cable (maximum 100m) |

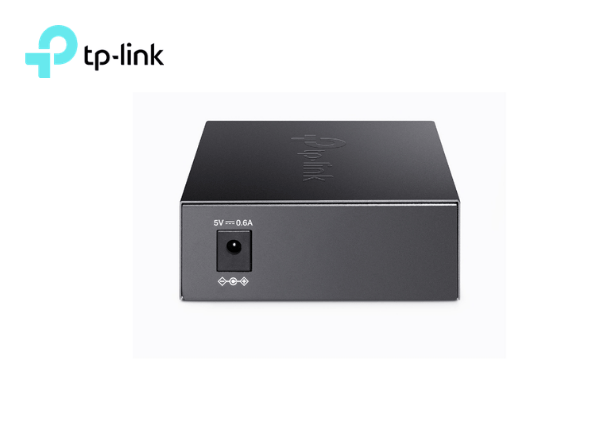

| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 3.7 ร 2.9 ร 1.1 in (95 ร 73 ร 27 mm) |
| Wave Length | โข 1310 nm TX โข 1550 nm RX |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Fiber Type | 9/125 ฮผm single-mode fiber |
| OTHERS | |
|---|---|
| Package Contents | โข Media Converter TL-FC311B-20 โข Power Adapter โข Installation Guide |
