Description
Model: TL-SG3428X

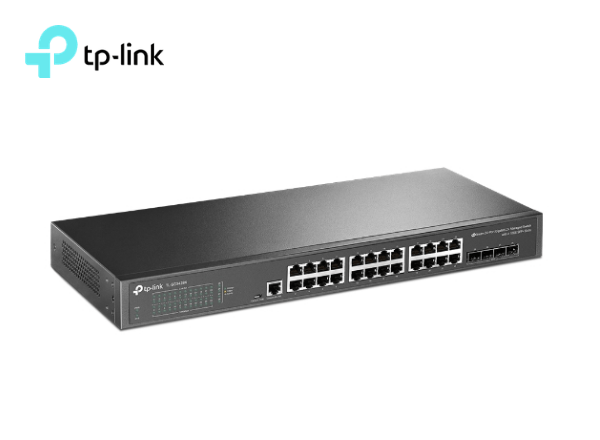

TP-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
Overview
- 10G Lightning-Fast Uplink:ย 4ร 10 Gbpsย SFP slots enable high-bandwidth connectivity and non-blocking switching capacity.
- Gigabit Speeds:ย 24ร gigabit RJ45 ports offerย high-speed and reliable connections to other switches and devices.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS andย IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Specifications
| HARDWARE FEATURES | |
|---|---|

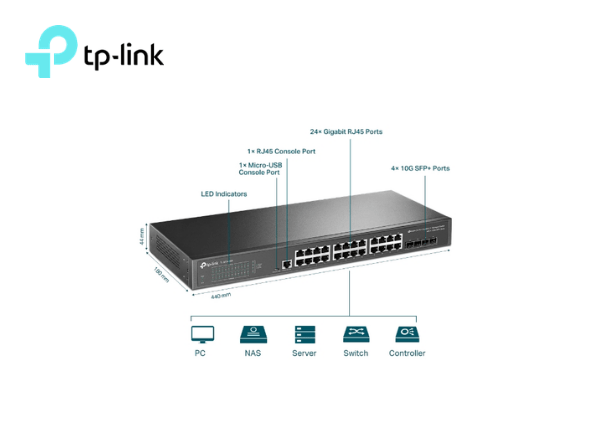

| Interface | โข 24ร 10/100/1000 Mbps RJ45 Ports โข 4ร 10G SFP Slots โข 1ร RJ45 Console Port โข 1ร Micro-USB Console Port |
| Fan Quantity | Fanless |

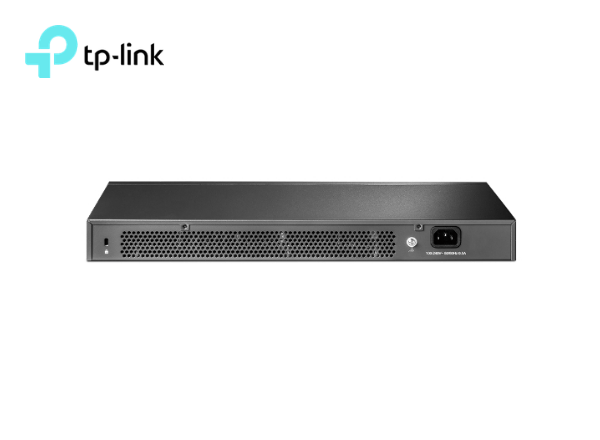

| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3 ร 7.1 ร 1.7 in (440 ร 180 ร 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 23.6 W (110V/60Hz) |
| Max Heat Dissipation | 80.353 BTU/h (110 V/60 Hz) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | โข 8 priority queues โข 802.1p CoS/DSCP priority โข Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP WRR โข Bandwidth Control – Port/Flow based Rating Limiting โข Smoother Performance โข Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
| L2 and L2 Features | โข Link Aggregation – static link aggregation – 802.3ad LACP – Up to 8 aggregation groups, containing 8 ports per group โข Spanning Tree Protocol – 802.1d STP – 802.1w RSTP – 802.1s MSTP – STP Security: TC Protect, BPDU Filter, Root Protect โข Loopback Detection – Port based – VLAN based โข Flow Control – 802.3x Flow Control – HOL Blocking Prevention โข Mirroring – Port Mirroring – CPU Mirroring – One-to-One – Many-to-One – Tx/Rx/Both |
| L2 Multicast | โข IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave – IGMP Snooping Querier – IGMP Authentication โข IGMP Authentication โข MLD Snooping – MLD v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config – Limited IP Multicast โข MVR โข Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | โข VLAN Group – Max 4K VLAN Groups โข 802.1Q Tagged VLAN โข MAC VLAN: 7 Entries โข Protocol VLAN: Protocol Template 16, Protocol VLAN 16 โข Private VLAN โข GVRP โข VLAN VPN (QinQ) – Port-Based QinQ – Selective QinQ โข Voice VLAN |
| Access Control List | โข Time-based ACL โข MAC ACL – Source MAC – Destination MAC – VLAN ID – User Priority – Ether Type โข IP ACL -Source IP – Destination IP – Fragment – IP Protocol – TCP Flag – TCP/UDP Port – DSCP/IP TOS – User Priority โข Combined ACL โข Packet Content ACL โข IPv6 ACL โข Policy – Mirroring – Redirect – Rate Limit – QoS Remark โข ACL apply to Port/VLAN |
| Security | โข IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard: 100 Entries โข IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – IPv6 Source Guard: 100 Entries โข DoS Defend โข Static/Dynamic Port Security – Up to 64 MAC addresses per port โข Broadcast/Multicast/Unicast Storm Control – kbps/ratio control mode โข 802.1X – Port base authentication – Mac base authentication – VLAN Assignment – MAB – Guest VLAN – Support Radius authentication andaccountability โข AAA (including TACACS ) โข Port Isolation โข Secure web management through HTTPS with SSLv3/TLS 1.2 โข Secure Command Line Interface (CLI) management with SSHv1/SSHv2 โข IP/Port/MAC based access control |
| IPv6 | โข IPv6 Dual IPv4/IPv6 โข Multicast Listener Discovery (MLD) Snooping โข IPv6 ACL โข IPv6 Interface โข Static IPv6 Routing โข IPv6 neighbor discovery (ND) โข Path maximum transmission unit (MTU) discovery โข Internet Control Message Protocol (ICMP) version 6 โข TCPv6/UDPv6 โข IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet (v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP |
| L3 Features | โข 16 IPv4/IPv6 Interfaces โข Static Routing – 48 static routes โข Static ARP – 128 Static Entries โข Proxy ARP โข Gratuitous ARP โข DHCP Server โข DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay โข DHCP L2 Relay |
| Management | โข Web-based GUI โข Command Line Interface (CLI) through the console port, telnet โข SNMP v1/v2c/v3 – Trap/Inform – RMON (1,2,3,9 groups) โข SDM Template โข DHCP/BOOTP Client โข 802.1ab LLDP/LLDP-MED โข DHCP AutoInstall โข Dual Image, Dual Configuration โข CPU Monitoring โข Cable Diagnostics โข EEE โข Password Recovery โข SNTP โข System Log |
| Advanced Features | โข Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller โข Automatic Device Discovery โข Batch Configuration โข Batch Firmware Upgrading โข Intelligent Network Monitoring โข Abnormal Event Warnings โข Unified Configuration โข Reboot Schedule โข ZTP (Zero-Touch Provisioning)* |
| MIBs | โข MIB II (RFC1213) โข Interface MIB (RFC2233) โข Ethernet Interface MIB (RFC1643) โข Bridge MIB (RFC1493) โข P/Q-Bridge MIB (RFC2674) โข RMON MIB (RFC2819) โข RMON2 MIB (RFC2021) โข Radius Accounting Client MIB (RFC2620) โข Radius Authentication Client MIB (RFC2618) โข Remote Ping, Traceroute MIB (RFC2925) โข Support TP-Link private MIB |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | โข TL-SG3428X Switch โข Power Cord โข Quick Installation Guide โข Rackmount Kit โข Rubber Feet |
| Environment | โข Operating Temperature: 0โ45 โ (32โ113 โ); โข Storage Temperature: -40โ70 โ (-40โ158 โ) โข Operating Humidity: 10โ90% RH non-condensing โข Storage Humidity: 5โ90% RH non-condensing |
