$ 45


  • Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.
  • Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.โ€

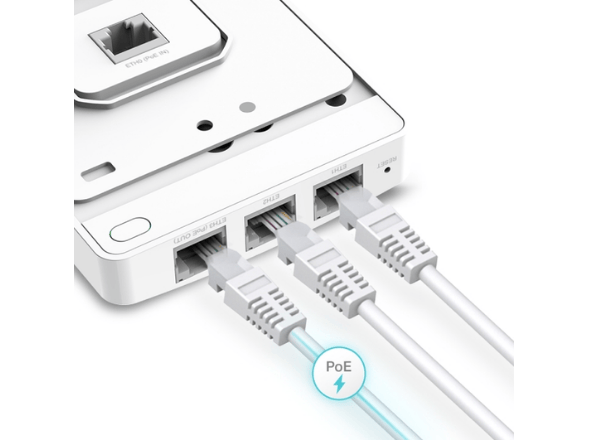

  • Four Gigabit Ports: 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices.
  • Centralized Management: Cloud access and Omada app for mobility and easy management.

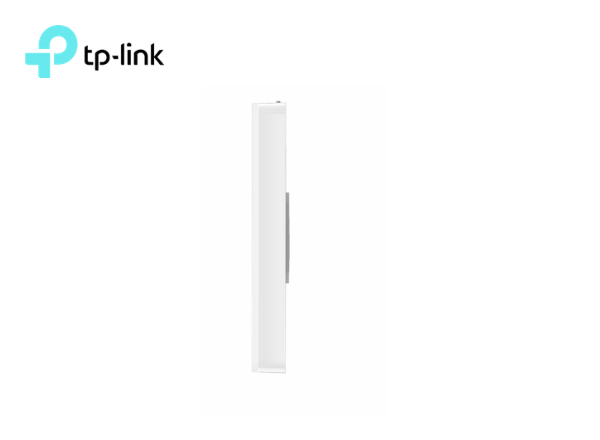

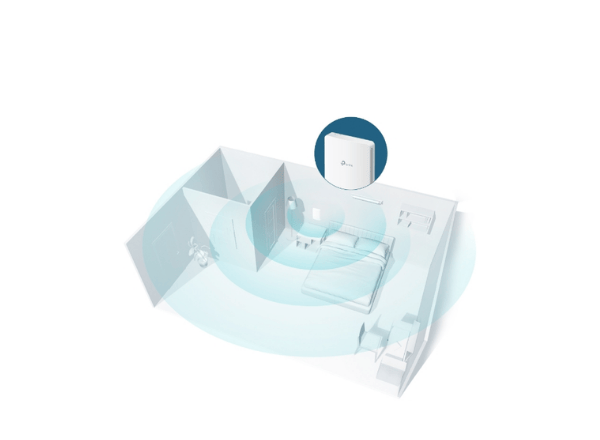

  • Elegant Appearance: Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and dormitories.
15-08-2022 3:52 PM

Model :ย EAP235-Wall

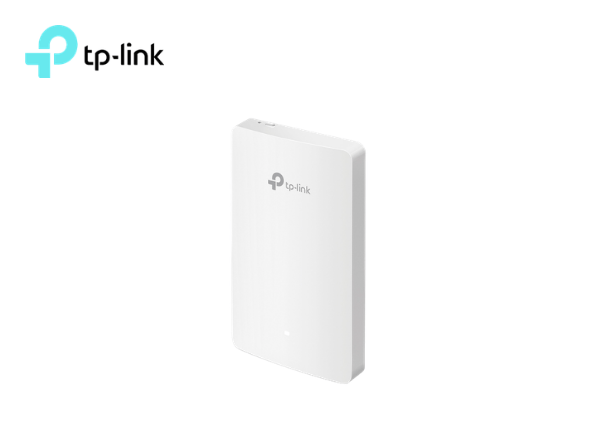

Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

Overview

  • Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.
  • Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867ย Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.โ€
  • Four Gigabitย Ports: 4 Gigabit Ethernet ports, oneย uplink and threeย access ports. PoE pass-through is available on one of the access portย providingย power for desk phones, cameras or other PoE devices.
  • Centralized Management: Cloud access and Omada app forย mobility and easy management.
  • Elegant Appearance: Ultra slimmest and conspicuous design blends the access pointย into the walls of hotel rooms, hospitals, offices, and dormitories.
  • Easy Installation and PoE Support: Easy-mount construction, compatible with US, EU and 86mmย junction boxes with PoE support.
  • Customer Oriented Guest Network: Along with multiple ways of login (SMS, Facebook Wi-Fi, Voucher, and customizable captive portal)ย allows guest accessย smoothly and friendly.
  • Advanced Wireless Tech: Optimize network performance with airtime fairness, band steering,ย and beamforming technologies.

Specifications

HARDWARE FEATURES
Interface Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/802.3at PoE
Power Consumption 9.8 watts 24.4 watts with 13w PoE output
Dimensions ( W x D x H ) 143 ร— 86 ร— 20 mm (5.6 ร— 3.4 ร— 0.8 in)
Dimensions 5.6 ร— 3.4 ร— 0.8 in. 143 ร— 86 ร— 20 mm
Antenna 2.4 GHz: 2ร— 4 dBi 5 GHz: 2ร— 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps
Wireless Functions 16 SSIDs (Up to 8 SSIDs on each band) Enable/ disable SSID broadcast Automatic channel assignment Transmit power control (adjustable in 1 dBm step) QoS (WMM) Band steering Beamforming Load balance Rate limit Scheduled reboot Wireless scheduled on/off Wireless Statistics based on SSID, access point, or client
Wireless Security Captive portal authentication Access control list Wireless MAC address filtering Wireless isolation between clients SSID to VLAN Mapping LAN port-based VLAN Rogue AP detection 802.1X EAP support 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power โ‰ค21 dBm (2.4 GHz) โ‰ค21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
Cloud Access Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/ remote syslog
SSH Yes
Web-based Management HTTP/ HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification FCC, RoHS
Package Contents Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall Installation guide Mounting screw
Environment Operating temperature: 0โ€“40 โ„ƒ (32โ€“104 โ„‰) Storage temperature: -40โ€“70 โ„ƒ (-40โ€“158 โ„‰) Operating humidity: 10โ€“90% RH non-condensing Storage humidity: 5โ€“90% RH non-condensing
For additional version information, please go to the support page.
