$ 12


  • Up to 150Mbps wireless transmission rate
  • Provides PCI Express interface
  • Advanced secure connection with WPA/WPA2 encryption
  • Bundled utility enables easy management
13-08-2022 9:46 AM

Model: TL-WN781ND

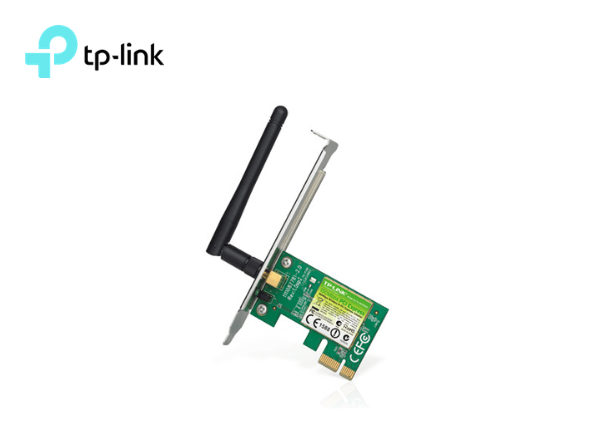

TP-Link 150Mbps Wireless N PCI Express Adapter

Overview

  • Up to 150Mbps wireless transmission rate
  • Provides PCI Express interface
  • Advanced secure connection with WPA/WPA2 encryption
  • Bundled utility enables easy management

Specifications

Interface PCI Express
Dimensions ( W x D x H ) 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)
Antenna Type Detachable Omni Directional (RP-SMA)
Antenna Gain 2dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.400-2.4835GHz
Signal Rate 11n: Up to 150Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Transmit Power <20dBm(EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
OTHERS
Certification CE, FCC, RoHS

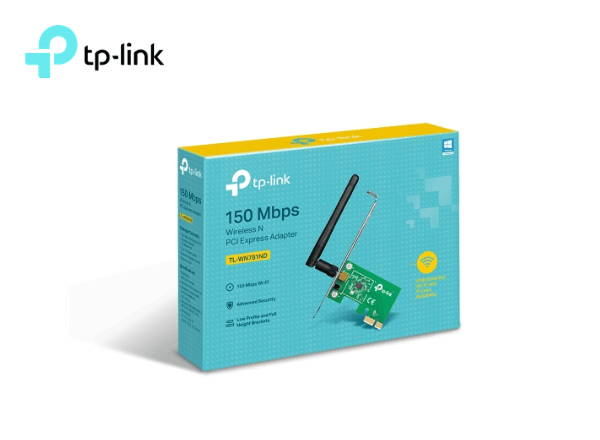

Package Contents Wireless Adapter Detachable Omni directional antenna Resource CD Quick Installation Guide
System Requirements Windows 8.1/8(32/64bits), Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits)
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
