$ 12


  • 10/100/1000Mbps PCIe Adapter
  • 32-bit PCIe interface, saving the finite chassis space
  • Wake-on-LAN, convenient to manage over LAN
13-08-2022 11:26 AM

Model: TG-3468

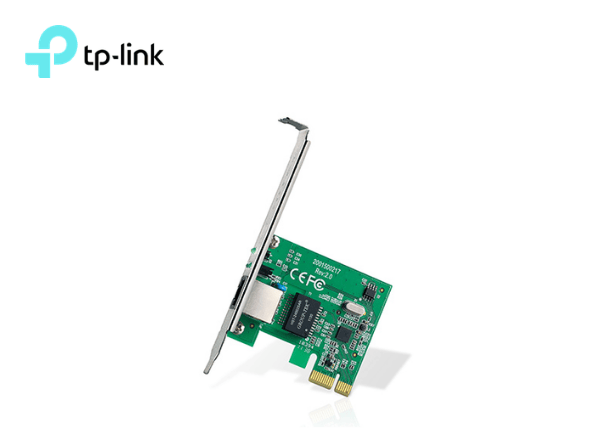

TP-Link Gigabit PCI Express Network Adapter

Overview

  • 10/100/1000Mbps PCIe Adapter
  • 32-bit PCIe interface, saving the finite chassis space
  • Wake-on-LAN, convenient to manage over LAN

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface 32-bit PCI Express 1 10/100/1000Mbps RJ45 port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Status
Wireless Standards IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Data Rates 10/100/1000Mbps for Half-Duplex mode 20/200/2000Mbps for Full-Duplex mode
LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Dimensions 3.1 ร— 4.8 ร— 0.8 in (78.5 ร— 120.8 ร— 21.5mm)
Flow Control IEEE 802.3x Flow Control (Full-Duplex)
OTHERS
Certification FCC, RoHS

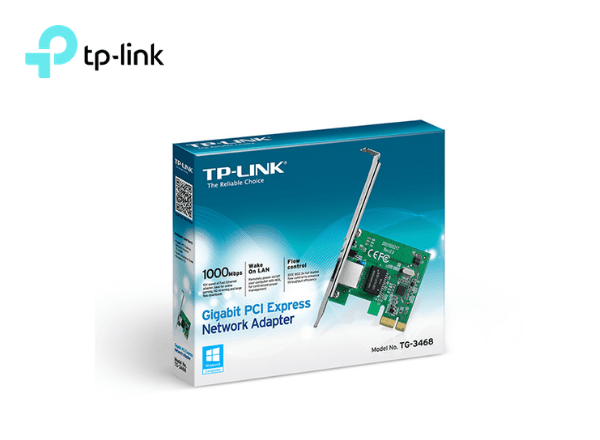

Package Contents Gigabit PCI Express Network Adapter TG-3468 Resource CD Quick Installation Guide
System Requirements Windows 11/10/8.1/8/7/XP/Vista (32/64bits)
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
