$ 10


  • 300Mbps wireless speed ideal for smooth HD video, voice streaming and online gaming*
  • Mini-sized design for convenient portability with a reliable high performance
  • Soft AP Mode โ€“ Turn a wired internet connection to a PC or Laptop into a Wi-Fi hotspot
  • Easily setup a secure wireless connection with one-touch WPS button
13-08-2022 8:38 AM

Model: TL-WN823N

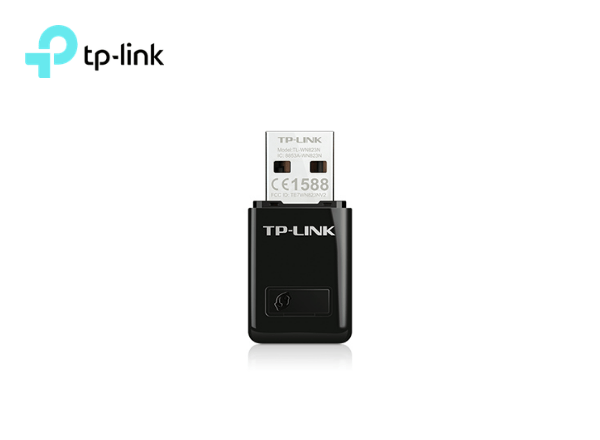

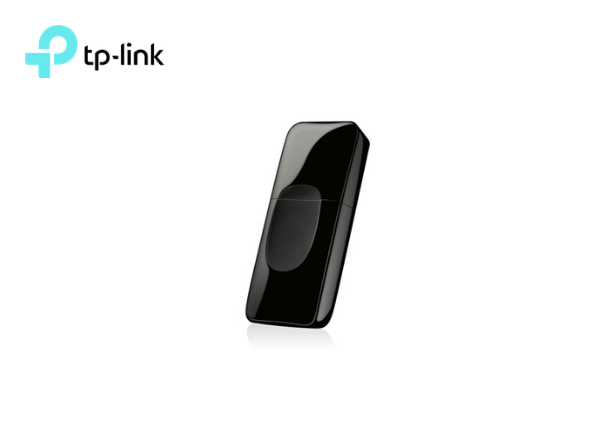

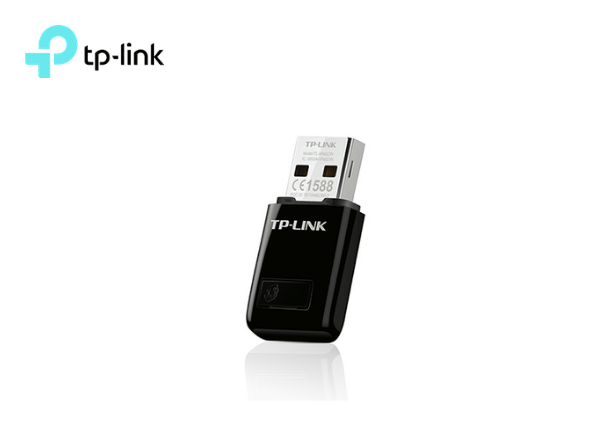

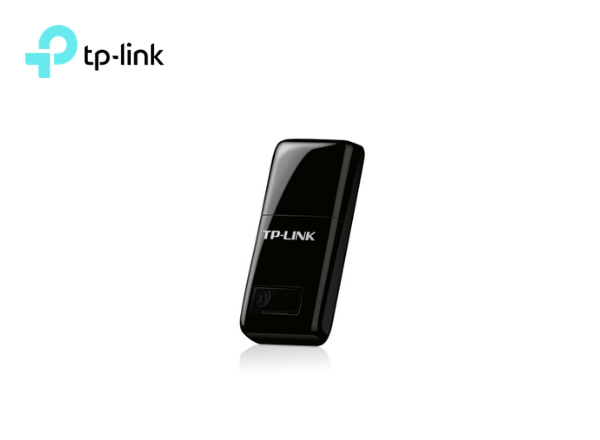

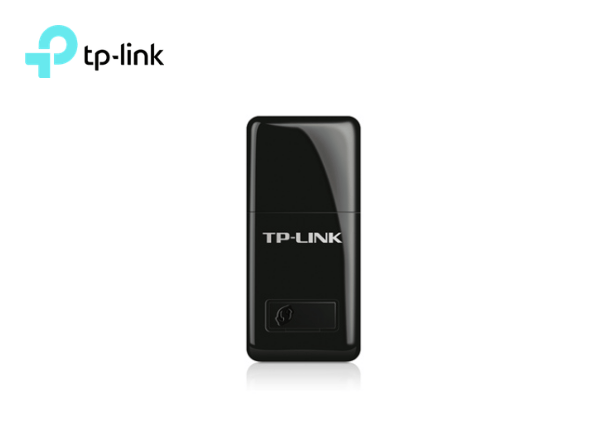

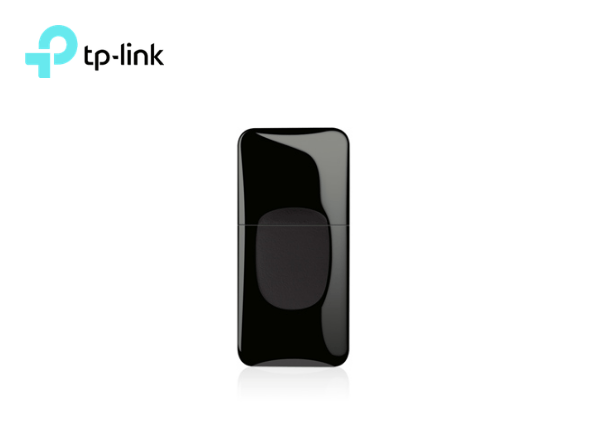

TP-Link 300Mbps Mini Wireless N USB Adapter

Overview

  • 300Mbps wireless speed ideal for smooth HD video, voice streaming and online gaming*
  • Mini-sized design for convenient portability with a reliable high performance
  • Soft AP Mode โ€“ Turn a wired internet connection to a PC or Laptop into a Wi-Fi hotspot
  • Easily setup a secure wireless connection with one-touch WPS button

Specifications

HARDWARE FEATURES
Interface USB 2.0
Button Wi-Fi Protected Setup (WPS) Button
Dimensions ( W x D x H ) 1.54 x 0.72 x 0.31 in. (39 x 18.35 x 7.87mm)
Antenna Type Internal
WIRELESS FEATURES
Wireless Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency 2.400~2.4835GHz
Signal Rate 11b: Up to 11Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11n: Up to 300Mbps(dynamic)
Reception Sensitivity 300M: -65dBm@10% PER 270M: -65dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -72dBm@10% PER 11M: -85dBm@8% PER 6M: -87dBm@10% PER 1M:-93dBm@8% PER
Transmit Power <20dBm (EIRP)
Wireless Modes Soft AP Mode Client Mode (support Ad-hoc/Infrastructure network)
Wireless Security 64/128-bit WEP WPA-PSK / WPA2-PSK WPA / WPA2
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
OTHERS
Certification FCC, IC, RoHS
Package Contents Wireless Adapter TL-WN823N Resource CD Quick Installation Guide
System Requirements Windows 11/10/8.1/8/7/XP (32/64bits), Mac OS X 10.9~10.13, Linux 2.6.24~4.9.60
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
