$ 115


  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
  • High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Ultra-Slim Design: Φ6.3 in. × 1.3 in. elegant design brings more agility.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
15-08-2022 3:36 PM

Model: EAP620 HD

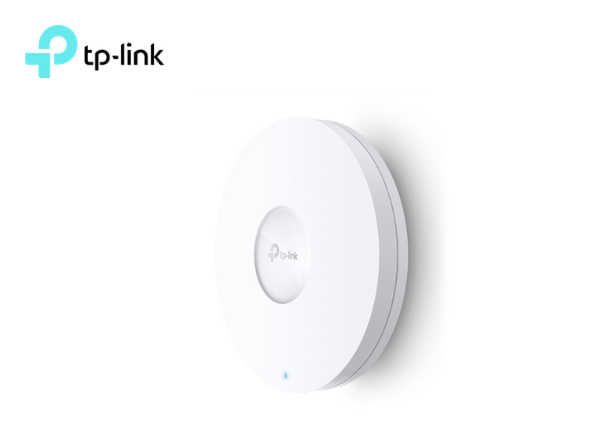

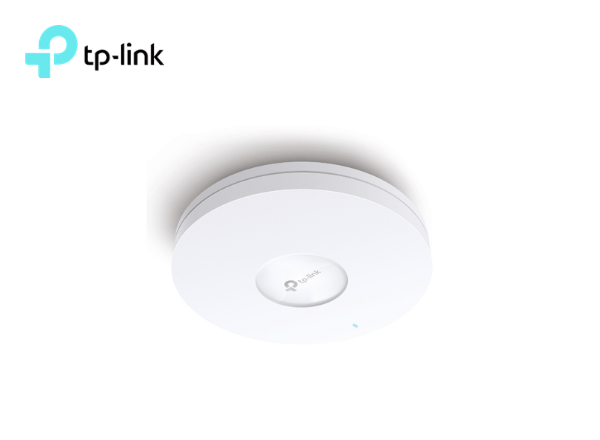

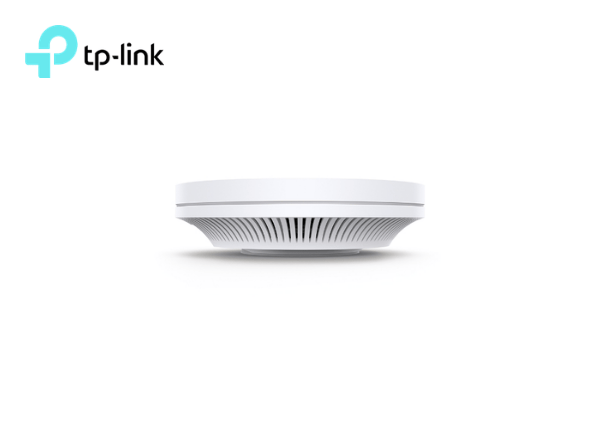

TP-Link AX1800 Ceiling Mount WiFi 6 Access Point

Overview

  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
  • High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Ultra-Slim Design: Φ6.3 in. × 1.3 in. elegant design brings more agility.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Specifications

HARDWARE FEATURES

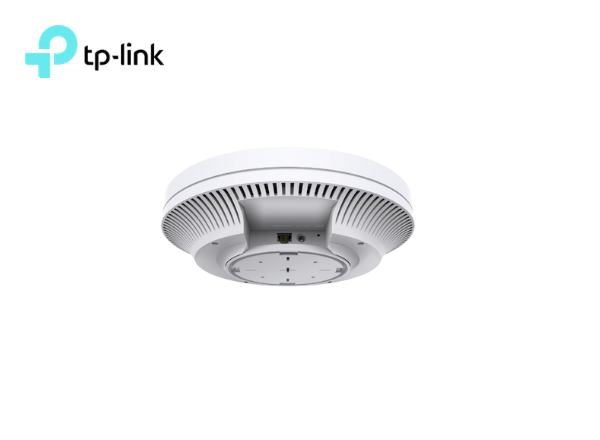

Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
Button Reset
Power Supply • 802.3at PoE • 48 V Passive PoE • 12 V / 1.5 A DC
Power Consumption • EU: 14.4 W (For PoE); 13.1 W (for DC) • US: 14.9 W (For PoE); 13.4 W (for DC)
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Mounting • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting
WIRELESS FEATURES
Coverage 140㎡(1500 ft²)***
Concurrent Clients 1,020+**
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming • Omada Mesh • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)• FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above)
OTHERS
Certification CE, FCC, RoHS
Package Contents • EAP620 HD • Power Adapter • Ceiling / Wall Mounting Kits • Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
