$ 15


  • Ultimate Wi-Fi Speed – AC1300 (400 Mpbs on 2.4GHz band and 867 Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac
  • Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity
  • Mini design –Mini-sized design for convenient portability with a reliable high performance
  • Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
  • MU-MIMO - Delivers highly efficient wireless connection
  • Supported Operating System – Windows 10/8.1/8/7/XP, Mac OS X
12-08-2022 4:43 PM

Model: Archer T3U

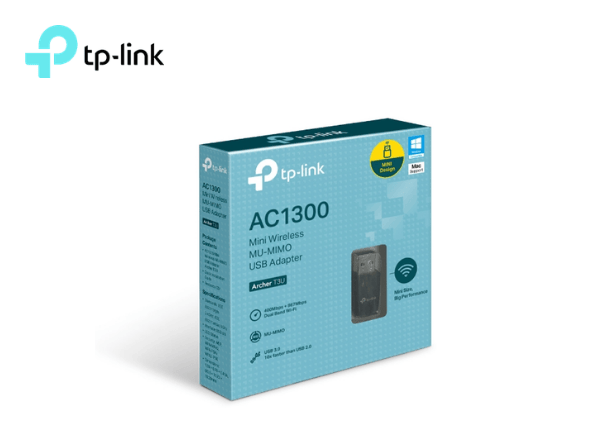

TP-Link  AC1300 Mini Wireless MU-MIMO USB Adapter

Overview

  • Ultimate Wi-Fi Speed – AC1300 (400 Mpbs on 2.4GHz band and 867 Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac
  • Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity
  • Mini design –Mini-sized design for convenient portability with a reliable high performance
  • Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
  • MU-MIMO - Delivers highly efficient wireless connection
  • Supported Operating System – Windows 10/8.1/8/7/XP, Mac OS X

Specifications

HARDWARE FEATURES
Interface USB 3.0
Dimensions ( W x D x H ) 1.59 × 0.78 × 0.41in. (40.5 × 19.72 × 10.29mm)
Antenna Type Omni Directional
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 5GHz 2.4GHz
Signal Rate 5GHz 11ac: Up to 867Mbps(dynamic) 11n: Up to 300Mbps(dynamic) 11a: Up to 54Mbps(dynamic) 2.4GHz 11n: Up to 400Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity 5GHz: 11a 6Mbps: -91dBm 11a 54Mbps: -76dBm 11n HT20:-71dBm 11n HT40:-70dBm 11ac HT20: -68dBm 11ac HT40: -64dBm 11ac HT80: -62dBm 2.4GHz: 11b 11Mbps: -86dBm 11g 54Mbps: -73dBm 11n HT20: -71dBm 11n HT40: -70dBm
Transmit Power <23dBm (EIRP)
Wireless Modes Ad-Hoc / Infrastructure Mode
Wireless Security Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents AC1300 Mini Wireless MU-MIMO USB Adapter Archer T3U Quick Installation Guide Resource CD
System Requirements Windows 10/8.1/8/7/XP, Mac OS X
Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
