Description
Model :ย RE505X

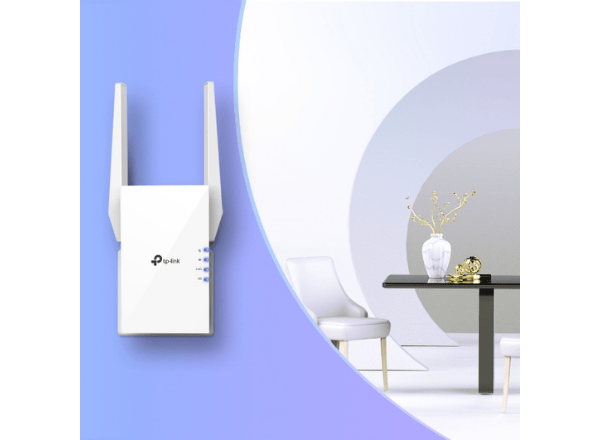

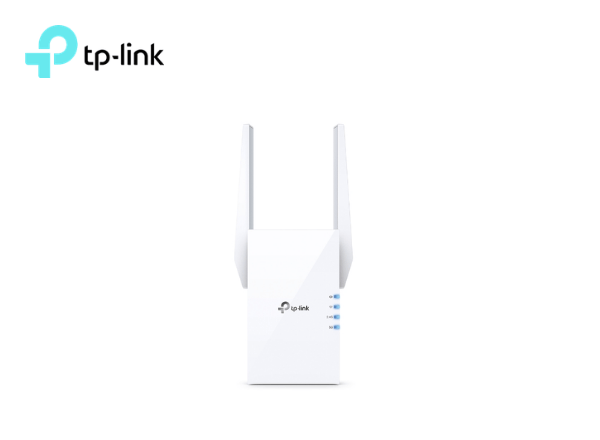

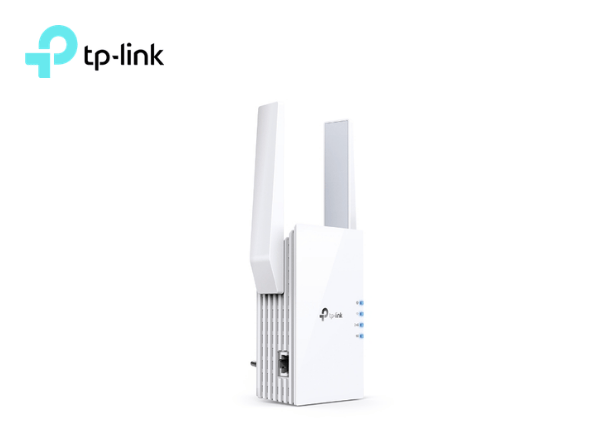

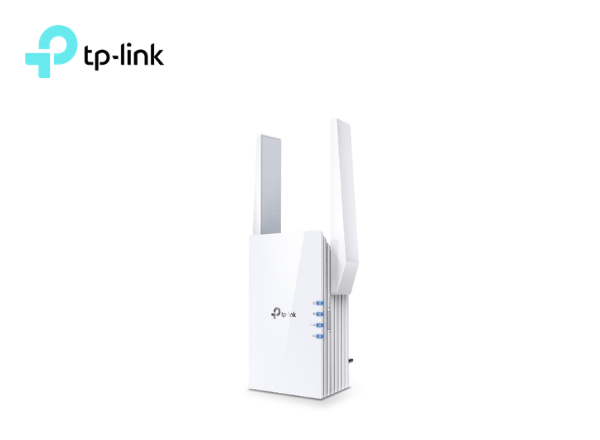

TP-Link AX1500 Wi-Fi 6 Range Extender
Overview
- Extend WiFi Coverage:ย Eliminate WiFi dead zones by expanding high-performance WiFi usingย specially designed high-gain antennas.
- Wi-Fi 6 Speeds:ย Enjoy smoother and more reliable streaming, gaming, downloading, and more with dual-band WiFi speeds up to 1.5 Gbps.
- Connect More Devices to Your Network:ย Connect more devices that are out of range from your main router while eliminating poor performance.
- Gigabit Ethernet Port:ย Experience wired speed and reliability anywhere in your home withย the gigabit ethernet port.ย ย
- TP-Link OneMeshโข Technology:ย Create a mesh network using compatible routers, like Archer A7, and range extenders so you never switch networks or lose signal.
- Set Up in Minutes:ย Easily set up and manage your WiFi in a few quick and easy steps using the intelligent signal indicator and TP-Link Tether app (Android, iOS).
- Universal Compatibility:ย Compatible with all WiFi-enabled devices and routers or access points. It even supports new AX phones, laptops and other devices.
Specifications
| WIRELESS | |
|---|---|
| Working Modes | Range Extender/Access Point |
| HARDWARE FEATURES | |
|---|---|
| Ports | 1 Gigabit Ethernet Port |
| Button | WPS Button, Reset Button |
| Input Power | 100-240V~50/60Hz |
| Power Consumption | 10W |
| Dimensions ( W x D x H ) | 2.9ร1.8ร4.9 in. (74.0ร46ร124.8 mm) |
| Antenna | 2 External Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 5GHz:
11a 6Mbps: -93dBm, 2.4GHz: 11g 54Mbps: -77dBm, |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2-PSK encryptions |
| Transmission Power | CE: 2.4GHz โค20dBm, 5GHz โค30dBm |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Wi-Fi Range Extender RE505X Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vistaโข or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Certifications | FCC, RoHS |
| Environment | Operating Temperature: 0โ~40โ (32โ ~104โ) Storage Temperature: -40โ~70โ (-40โ ~158โ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
