Model: TL-WA820RE

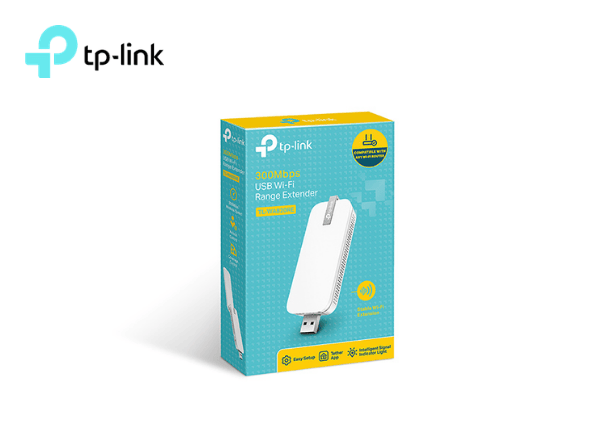

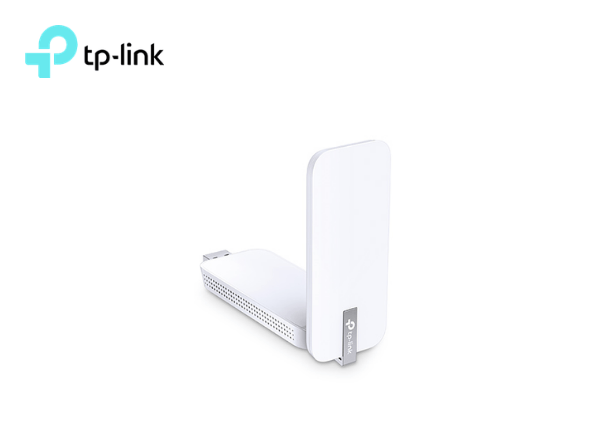

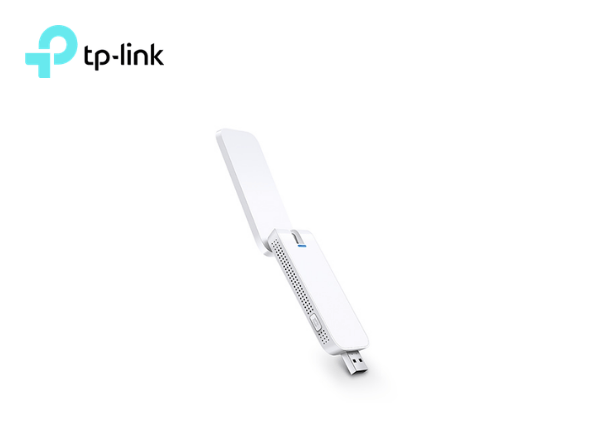

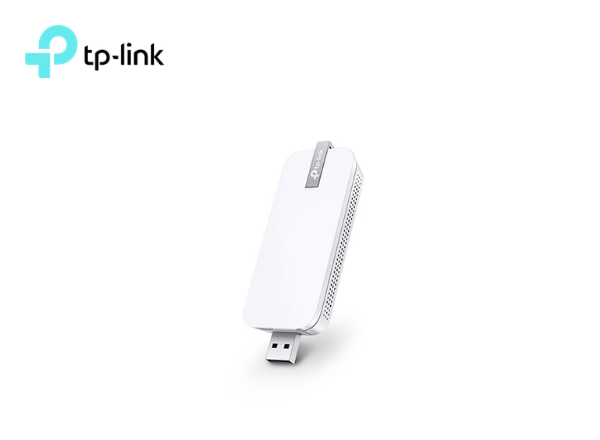

TP-Link 300Mbps USB Wi-Fi Range Extender

Overview

  • Superior Extension – Two external antennas expand your home's wireless coverage, creating reliable connections and eliminating dead zones
  • Compact Design – Miniature size and USB port design maximize flexible deployment and mobility
  • 300Mbps Wi-Fi – Ideal speeds for video and music streaming
  • WPS – Easily expand wireless coverage at a push of the WPS button
  • Intelligent Signal Light –Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
  • TP-Link Tether App – Easily access and manage your network using any iOS or Android mobile device
  • Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

Specifications

HARDWARE CHARACTERISTICS
Standards and Protocols IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Plug Type USB
Interface None
Buttons Reset/WPS
Input power 100-240V~50/60Hz
Power Consumption 2.5W MAX
Dimensions 89.41 x 36.6 x 14.3mm
Antennas 2 x external
WIRELESS FEATURES
Frequency 2.4GHz
Signal Rate 2.4GHz:Up to 300Mpbs
Reception Sensitivity 2.4GHz 11g 54M: -79dBm@10% PER 11n HT20 mcs7: -77dBm@10% PER 11n HT40 mcs7: -74dBm@10% PER"
Potency of transmission <18dBm
Wireless Modes Range Extender
Wireless Features Power Schedule Access Control LED Control Wi-Fi Coverage"
Wireless Security 64/128-bit WEP WPA-PSK / WPA2-PSK
OTHERS
Certifications CE, RoHS
Package content 300Mbps Wi-Fi Range Extender TL-WA820RE Quick Installation Guide"
Box dimensions 156.5 x 101.5 x 30mm
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing"
