Description
Model: MC210CS

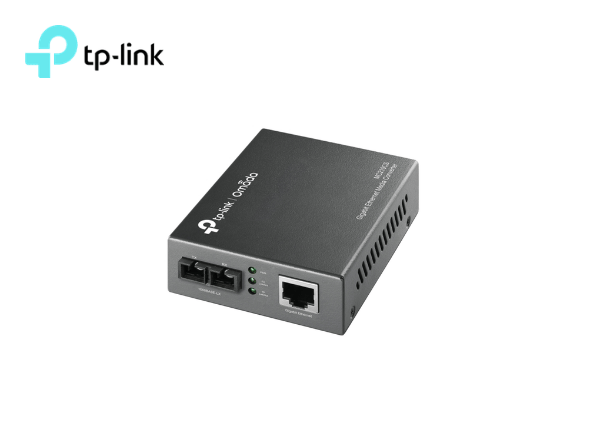

TP-Link Gigabit Single-Mode Media Converter
Overview
- 1รย 10/100/1000Mbps Auto-Negotiation RJ45 portย supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 20km
Specifications
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 20km |
| Ports | 1ร 1000M SC/UPC port 1ร 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 1000BASE-LX | Single-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.8W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | โข Media Converter MC210CS โข Power Adapter โข Installation Guide |
| Environment | โข Operating Temperature: 0โ~50โ (32โ~122โ) โข Storage Temperature: -40โ~70โ (-40โ~158โ) โข Operating Humidity: 10%~90% non-condensing โข Storage Humidity: 5%~90% non-condensing |
