Description
Model: TL-FC111B-20
TP-Link 10/100 Mbps WDM Media Converter
Overview
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- 9/125 μm SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Ranges up to 20km (12.4 miles)
- Work with TL-FC111B-20 as a pair
Specifications
NETWORK | |
---|---|
Standards and Protocols | IEEE802.3, IEEE802.3i, IEEE802.3u |
ENVIRONMENT | |
---|---|
Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
Operating Humidity | 10% to 90% RH non-condensing |
Storage Humidity | 5% to 90% RH non-condensing |
HARDWARE FEATURES | |
---|---|

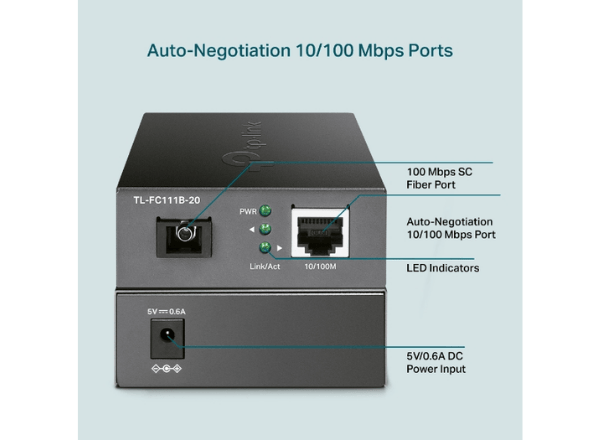

Interface | • 1× 100 Mbps SC Fiber Port • 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX) |
Network Media | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) |
Power Supply | External Power Adapter: 5 V/0.6 A |
LED | PWR, Link/Act |
Wave Length | 1310 nm TX, 1550 nm RX |

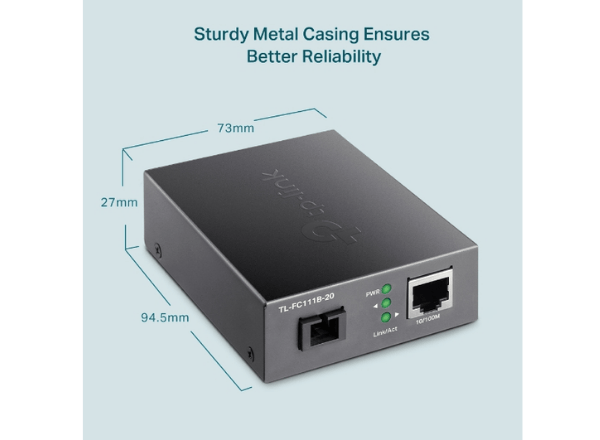

Dimensions ( W x D x H ) | 94.5*73*27 mm |
MEDIA CONVERTER & MODULE | |
---|---|
Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE802.3u |
Basic Function | Auto-negotiation of half-duplex / full-duplex transfer mode Full-duplex flow control (IEEE 802.3x) Half-duplex flow control (Backpressure) Extends fiber distance up to 20km (12.4 miles) |
Ports | 1x 100M single SC/UPC port 1x 10/100M RJ45 port (Auto MDI/MDIX) |
WDM TX | 1310 nm |
WDM RX | 1550 nm |
Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Network Media 100BASE-FX | Single-mode fiber |
LED Indicators | PWR, Link/Act |
Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
Power Supply | External Power Adapter: 5 V/0.6 A |
Safety & Emission | FCC, CE, RoHS |
Fiber Type | 9/125 μm single-mode fber (≤20 km) |
Environment | Operating Temperature: 0℃~50℃ (32℉~122℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
OTHERS | |
---|---|
Package Contents | • Media Converter TL-FC111B-20 • Power Adapter • Installation Guide |
