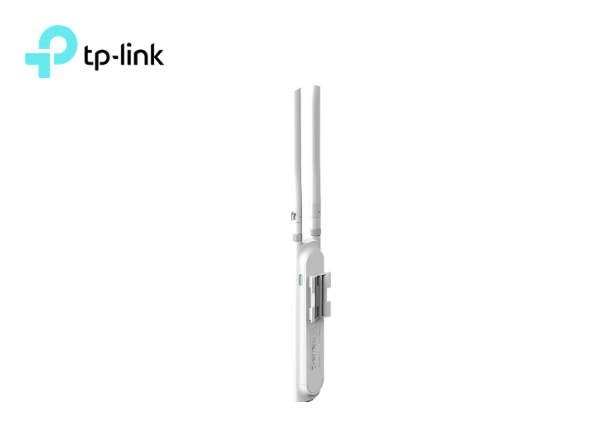

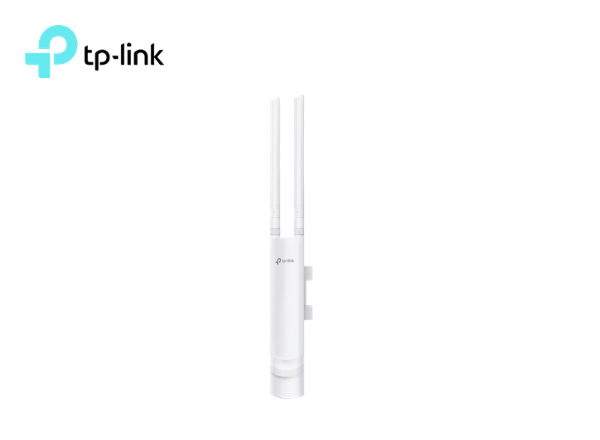

Model : EAP225-Outdoor
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Overview
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps1 with 2ร2 MIMO technology
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
- Supports Seamless Roaming to smooth theย video playbacks and voice calls whenย moving between locations
- High transmission power and high gain antennas provide a long-range coverage area
- Free cloud centralized management and Omada app for ultra convenience and easy management
- Captive portal provides a convenient method for guest authentication
- Facebook Wi-Fi and SMS anthentication help to boost your business
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installationLearn more about Controller Software >
Specifications
| HARDWARE FEATURES |
| Interface |

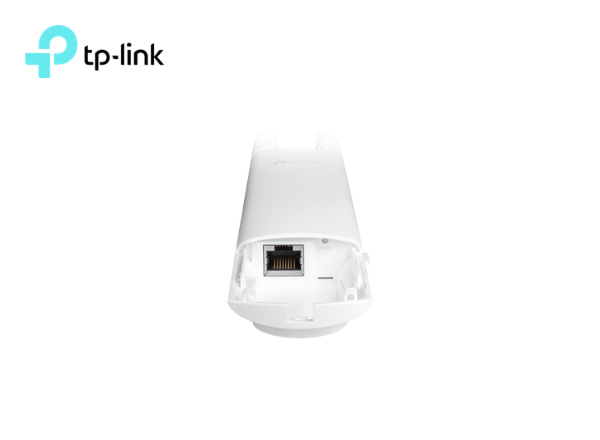

One gigabit Ethernet RJ-45 port (Support 802.3af PoE and Passive PoE) |
| Button |
Reset |
| Power Supply |
802.3af PoE and 24 Passive PoE(PoE injector included) |
| Power Consumption |
10.5W |
| Dimensions ( W x D x H ) |
8.5 ร 1.8 ร 1.1in.
(215 ร 46 ร 27 mm) |
| Antenna |
2.4GHz: 2 ร 3dBi
5GHz: 2 ร 4dBi |
| Weatherproof Enclosure |
IP65 |
| Mounting |
Pole/Wall mount (mounting kit included) |
| Hardware Watch Dog |
Yes |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11a/b/g/n/ac |
| Frequency |
2.4GHz, 5GHz |
| Signal Rate |
802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions |
Multiple SSIDs๏ผUp to 16 SSIDs, 8 for each band๏ผ
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control ๏ผAdjust Transmit Power on dBm๏ผ
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support |
| Transmission Power |
23dBm, max. (2.4GHz)
22dBm, max. (5GHz) |
| MANAGEMENT |
| Omada App |
Yes |
| Omada Cloud Controller |
Yes |
| Omada Controller Software |
Yes |
| Cloud Access |
Yes |
| Email Alerts |
Yes |
| Management MAC Access Control |
Yes |
| System Logging Local/Remote Syslog |
Yes |
| SSH |
Yes |
| Web-based Management |
Yes |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| OTHERS |
| Certification |
FCC
RoHS |

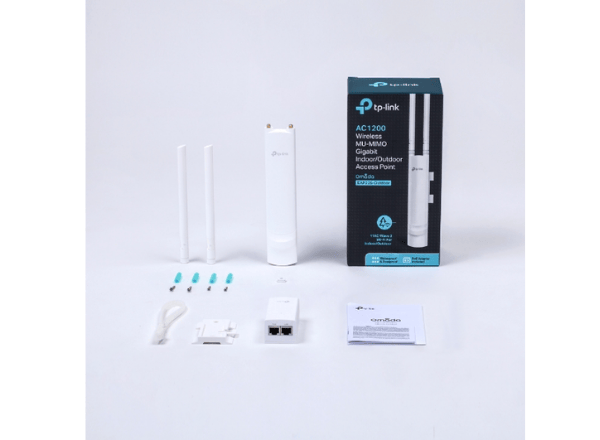

| Package Contents |
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Passive PoE Injector
Power Cord
Mounting Kits
Installation Guide
Waterproof Ruber Insert
Waterproof Antenna |
| Environment |
Operating Temperature: -30โ~70โ (-22โ~158โ)
Storage Temperature: -40โ~70โ (-40โ~158โ)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
For additional version information, please go to the support page.
