$ 110


  • Superior WiFi 6 Speeds:ย Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology
  • Higher Network Efficiency:ย Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
  • Long-Range Coverage:ย Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
  • Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment
  • Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
  • Centralized Cloud Management:ย Integrates into Omada SDN for cloud access and remote management
03-03-2023 11:45 AM

Model: EAP610-Outdoor

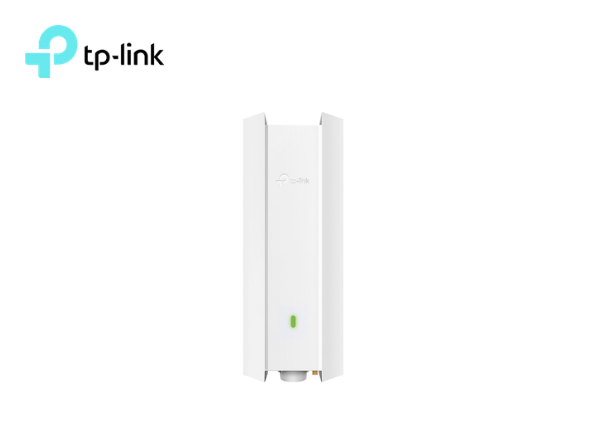

TP-Link AX1800 Indoor/Outdoor WiFi 6 Access Point

  • Superior WiFi 6 Speeds:ย Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology
  • Higher Network Efficiency:ย Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
  • Long-Range Coverage:ย Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
  • Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment
  • Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
  • Centralized Cloud Management:ย Integrates into Omada SDN for cloud access and remote management

Specifications

HARDWARE FEATURES
Interface 1ร— Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button Reset
Power Supply โ€ข 802.3at PoE โ€ข 48V/0.5A Passive PoE (PoE Adapter Included)
Power Consumption โ€ข EU: 12.5W (802.3at PoE or Passive PoE) โ€ข US: 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H ) โ€ข 280.4ร—106.5ร—56.8 mm (without antenna & mounting kit)
Antenna โ€ข 2.4 GHz: 2ร— 4 dBi โ€ข 5 GHz: 2ร— 5 dBi
Weatherproof Enclosure IP67
Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Client Capacity 250+โ–ณ
Concurrent Clients 250+โ–ณ
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz, 5 GHz
Signal Rate โ€ข 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) โ€ข 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) โ€ข 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) โ€ข 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps โ€ข 802.11b: 1, 2, 5.5, 11 Mbps โ€ข 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power โ€ข CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) โ€ข FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Wireless Functions โ€ข 1024-QAM โ€ข 4ร— Longer OFDM Symbol โ€ข OFDMA โ€ข Multiple SSIDs (Up to 16 SSIDs, 8 for each band) โ€ข Enable/Disable Wireless Radio โ€ข Automatic Channel Assignment โ€ข Transmit Power Control (Adjust Transmit Power on dBm) โ€ข QoS (WMM) โ€ข MU-MIMO โ€ข Omada Mesh** โ€ข Seamless Roaming** โ€ข Band Steering โ€ข Load Balance โ€ข Airtime Fairness โ€ข Beamforming โ€ข Rate Limit โ€ข Reboot Schedule โ€ข Wireless Schedule โ€ข Wireless Statistics based on SSID/AP/Client
Wireless Security โ€ข Captive Portal Authentication** โ€ข Access Control โ€ข Wireless Mac Address Filtering โ€ข Wireless Isolation Between Clients โ€ข SSID to VLAN Mapping โ€ข Rogue AP Detection โ€ข 802.1X Support โ€ข WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada App Yes
Centralized Management โ€ข Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0) โ€ข Omada Hardware Controller (OC300) โ€ข Omada Hardware Controller (OC200) โ€ข Omada Software Controller
Cloud Access Yes, through โ€ข Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0) โ€ข OC300 โ€ข OC200 โ€ข Omada Software Controller
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0).
OTHERS
Certification CE, FCC, RoHS
Package Contents โ€ข Access Point EAP610-Outdoor โ€ข Passive PoE Adapter โ€ข Power Cord โ€ข Mounting Kits โ€ข Waterproof Kits โ€ข Waterproof Antenna โ€ข Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment โ€ข Operating Temperature: -30โ€“70 โ„ƒ (-22โ€“158 โ„‰) โ€ข Storage Temperature: -40โ€“70 โ„ƒ (-40โ€“158 โ„‰) โ€ข Operating Humidity: 10โ€“90% RH non-condensing โ€ข Storage Humidity: 5โ€“90% RH non-condensing
