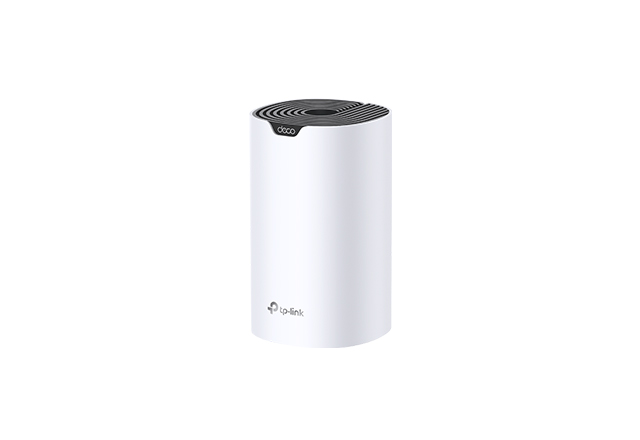

Model : Deco S7(1-pack)
AC1900 Whole Home Mesh Wi-Fi System
1900 Mbps WiFi Speed – Enjoy binge watching your favorite series in 4K with combined speeds of up to 1900 Mbps (600 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz ) with 3×3 MU-MIMO technology.
† ‡
Connect 100+ Devices – Deco handles traffic from even the busiest of networks, providing lag-free connections for over 100 devices.
†
Boosted Seamless Coverage – With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds.
§
Full Gigabit Ethernet – 3× Gigabit WAN/LAN Ethernet ports provide solid internet access at high speeds.
△
Robust Parental Controls – Limit online time and block inappropriate websites according to unique profiles you create for each family member.
Two Modes in One – Works as a router or access point for a flexible home network.
Easy Setup – Setup is easier than ever with the Deco app there to walk you through every step.
Specifications
| WIRELESS |
| Standards |
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n) |
| WiFi Range |
1-2 Bedroom Houses (1-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul works together to link Deco units to provide seamless coverage
3× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
Medium
Dual-Band
Distribute devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients |
| Working Modes |
Router Mode
Access Point Mode |
| HARDWARE |

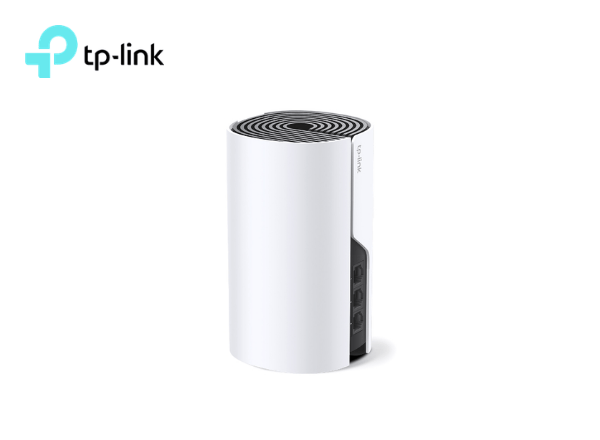

| Ethernet Ports |
3× Gigabit Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing |
| Buttons |
Reset Button |
| SECURITY |
| WiFi Encryption |
WPA-Personal
WPA2-Personal |
| Network Security |
SPI Firewall
Access Control |
| Guest Network |
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| SOFTWARE |
| Protocol |
IPv4
IPv6 |
| Parental Controls |
URL Filtering
Time Controls |
| WAN Type |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding |
Port Forwarding
UPnP |
| IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP |
Address Reservation
DHCP Client List
Server |
| DDNS |
TP-Link |
| Management |
Deco App |
| TEST DATA |
| WiFi Transmission Power |
CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz) |
| PHYSICAL |
| Dimensions (W×D×H) |
6.4 × 3.6 × 3.6 in
(162.3 × 90.7 × 90.7 mm) |
| Package Contents |
Deco S7 (3-pack)
3 Deco S7 Units
1 RJ45 Ethernet Cable
3 Power Adapters
Quick Installation Guide
Deco S7 (2-pack)
2 Deco S7 Units
1 RJ45 Ethernet Cable
2 Power Adapters
Quick Installation Guide
Deco S7 (1-pack)
1 Deco S7 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
Quick Installation Guide |
| OTHERS |
| Certification |
CE, FCC, RoHS, NCC, BSMI, JRF, JPA, VCCI |
| System Requirements |
Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
