$ 16


  • Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
  • Green Ethernet technology saves the power up to 85%
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop or wall-mounting design
  • Plug and play, no configuration required
15-08-2022 9:56 AM

Model: TL-SG1005D

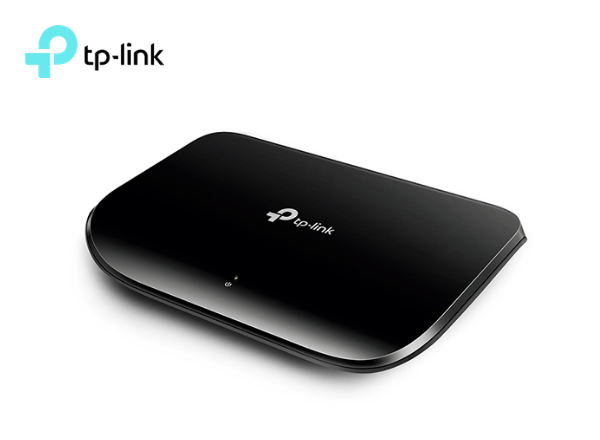

TP-Link 5-Port Gigabit Desktop Switch

Overview

  • 5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
  • Green Ethernet technology saves the power up to 85%
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop or wall-mounting design
  • Plug and play, no configuration required

Specifications

HARDWARE FEATURES
Interface 5 10/100/1000Mbps RJ45 Ports Auto Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Physical Security Lock No
External Power Supply External Power Adapter (Output: 9VDC / 0.6A)
Dimensions ( W x D x H ) 5.5 ร— 3.5 ร— 0.9 in. (140 ร— 88 ร— 23 mm)
Max Power Consumption 2.4W
Max Heat Dissipation 8.2 BTU/h
SOFTWARE FEATURES
Transmission Method Store and Forward
Advanced Functions Green Technology 802.3x Flow Control Back Pressure 802.1p/DSCP QoS
OTHERS
Certification FCC, RoHs
Package Contents 5-Port Gigabit Desktop Switch TL-SG1005D Power Adapter Installation Guide
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰~104โ„‰) Storage Temperature: -40โ„ƒ~60โ„ƒ (-40โ„‰~140โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
