$ 32


  • 1 10/100/1000Mbps Auto-Negotiation RJ45 portย supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Extends fiber distance up to 1,800 feet (550m)
10-08-2022 9:01 AM

Model: MC200CM

TP-Link Gigabit Multi-Mode Media Converter

Overview

  • 1 10/100/1000Mbps Auto-Negotiation RJ45 portย supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Extends fiber distance up to 1,800 feet (550m)

Specifications

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

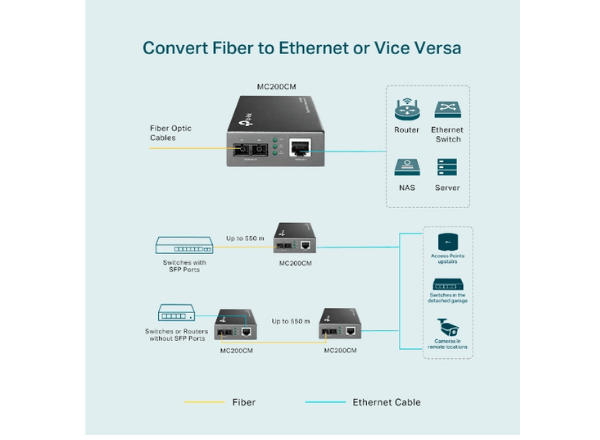

Basic Function Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 1,800 feet (550m) using 50/125um fiber Extends fiber distance up to 720 feet (220m) using 62.5/125um fiber
Ports 1 x 1000M dual SC/UPC port 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length 850nm
Network Media 1000BASE-SX Multi-mode Fiber
Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m)
LED Indicators PWR, Link/Act

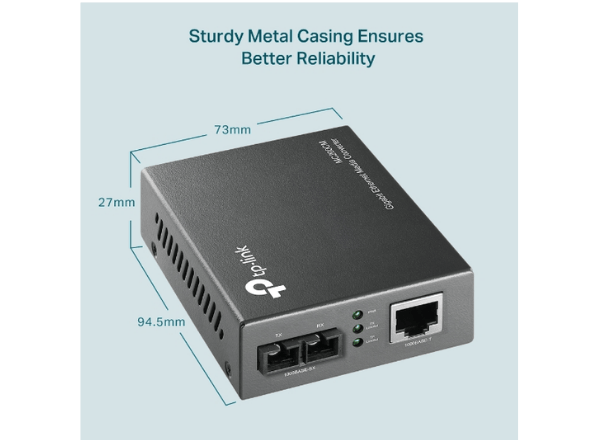

Dimensions (W*D*H) 3.7 ร— 2.9 ร— 1.1 in. (95 ร— 73 ร— 27 mm)
Power Supply External Power Adapter
Max Power Consumption 1.66W
Safety & Emission FCC, CE, RoHS
Package Contents โ€ข Media Converter MC200CM โ€ข Power Adapter โ€ข Installation Guide
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
